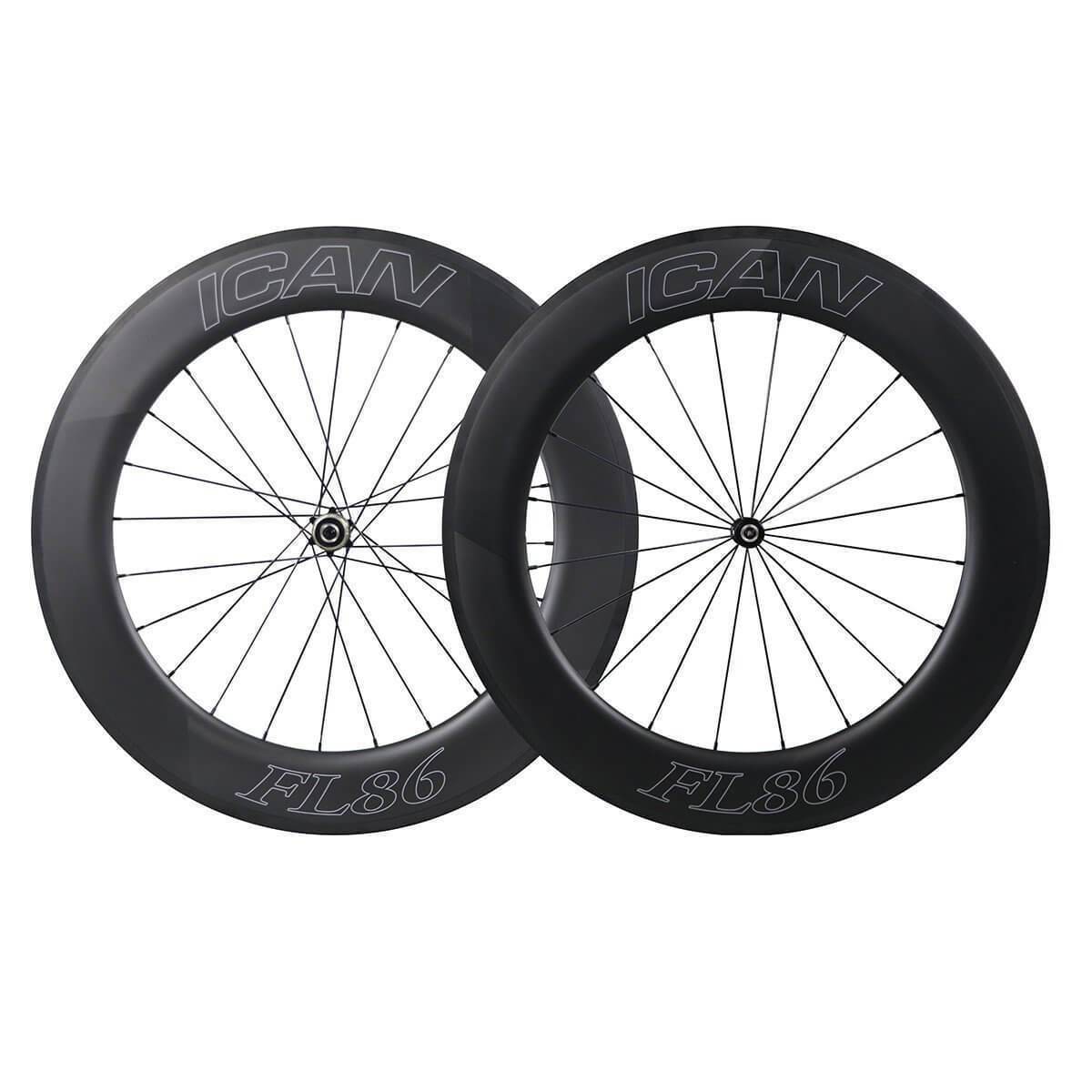

Our Fast and Light aero wheelsets are just that-Fast and light.
Our fastest wheelset is our FL86 carbon fiber aero wheels. We have used all of our carbon fiber knowledge to build you a light and stiff 86mm deep Toray T700 carbon fiber rim. The 86mm rim will be the perfect compliment to your aero frame or time trial/triathlon bike. Our wheels will not flex and skiff your brakes like other wheels. These wheels look fast even sitting still.
They are also bang up to date and feature the ability to be run tubeless. The aero rim is also wider to allow the tire to seat better and to help guide air around your tire and wheel. These wheels will slice through the air guiding you to a new PB.
To make sure these aero carbon fiber rims are race worthy we have attached them to Novatec sealed bearing hubs using Sapim CX-Ray spokes. We used Sapim spokes as they help to enhance the stiffness of our rims and are incredibly lightweight.
We fit Novatec hubs as they are simple to service and highly reliable. It is also easy to get spares from them anywhere in the world. They just simply work.
With a 3k braking track and a two-year guarantee you can be sure these wheels will last the test of time for you. Now is the time to make those aero gains you have promised yourself, and with our pricing a chance to do so affordable.
Features
Wide Rim Tech
25mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition. provides an ideal basis for 25/28mm tires, the sizes currently popular.
2-Way Clincher Tubeless. Tubes or No-Tubes
Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.
High Quality Straight Pull Hub
Novatec straight pull hub with 4 pawls and high quality Japanese sealed EZO bearings, it can use 3-5 years under normal usage. Thousands of riders all over the world on these hubs and they are great performers and super durable.
Sapim CX-RAY As light as a titanium spoke
The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.
UCI Approved
This wheelset has been certified and approved by the UCI (Union Cycliste Internationale), for use in UCI sanctioned road races.
Specification
Type |
Carbon Road Bike Wheelset |
Material |
100% Carbon Fiber Toray T700 |
Size |
700C |
Rim |
Finish: UD Matt Drills: 20/24 Holes Width: External: 27.25mm |
Depth |
86mm |
Profile |
Clincher Tubeless Ready |
Hub |
Novatec Hub (FS522SB/AS511SB) |
Spoke |
Sapim CX-Ray Spokes |
Spoke Count |
Front: 20 Rear: 24 |
Spoke Tension |
Front Wheelset: 15N Rear Wheelset: 13-20N |
Spoke Pattern |
Front:Radial
Rear: 2-cross
|
Nipple |
Alloy Color: Black |
Cassette Compatibility |
Shimano 10/11speeds |
Wheelset Weight |
Total: 1768+-20g
Front: 795+-10g Rear: 973+-10g
|
Rimset Weight |
1300g |
Brake Surface |
3K Carbon Braking Track |
Rider Weight Limit |
265lbs / 120kg
|
Guarantee |
2 years |
Free |
1 set of skewer
Carbon brakes pads
|
Packing Size |
81.5cm x 17cm x 65.5cm |
Recommended Tire Pressure
Below Chart is our recommended tire pressure,you can see more click here.
|
STANDARD CLINCHER TIRE WITH INNER TUBE |
TUBELESS TIRES |
≤ 65 KG RIDER |
23mm - 95/100 psi 25mm - 90/95 psi 28mm - 85/90 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 80/85 psi |
65 - 75 KG RIDER |
23mm - 100/105 psi 25mm - 95/100 psi 28mm - 90/95 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 85/90 psi |
75 - 85 KG RIDER |
23mm - 101/106 psi 25mm - 96/101 psi 28mm - 91/96 psi |
23mm - 95/98 psi 25mm - 90/95 psi 28mm - 85/90 psi |
85 - 95 KG RIDER |
23mm - 104/109 psi 25mm - 99/104 psi 28mm - 94/100 psi |
23mm - 95/99 psi 25mm - 90/95 psi 28mm - 88/95 psi |
IMPORTANT - Please check, and never exceed, the maximum recommended tire pressures on the side of your tire.
