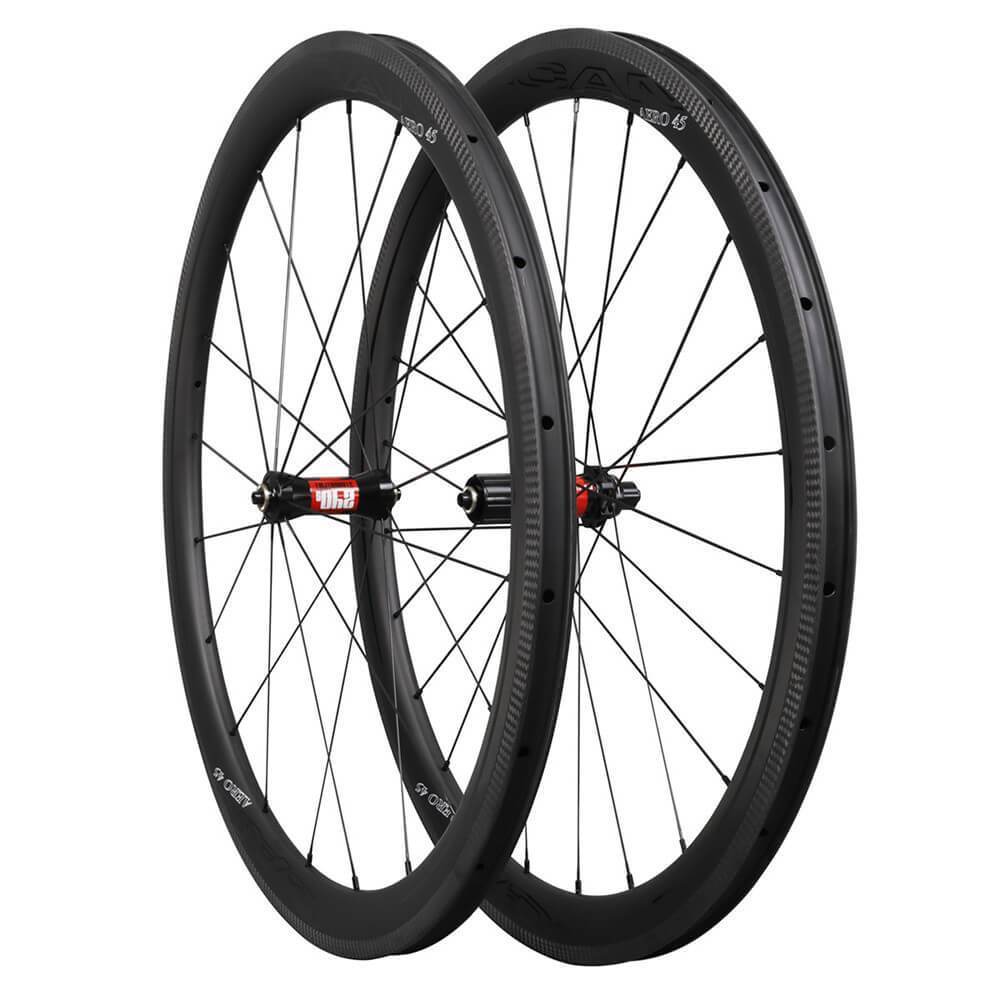

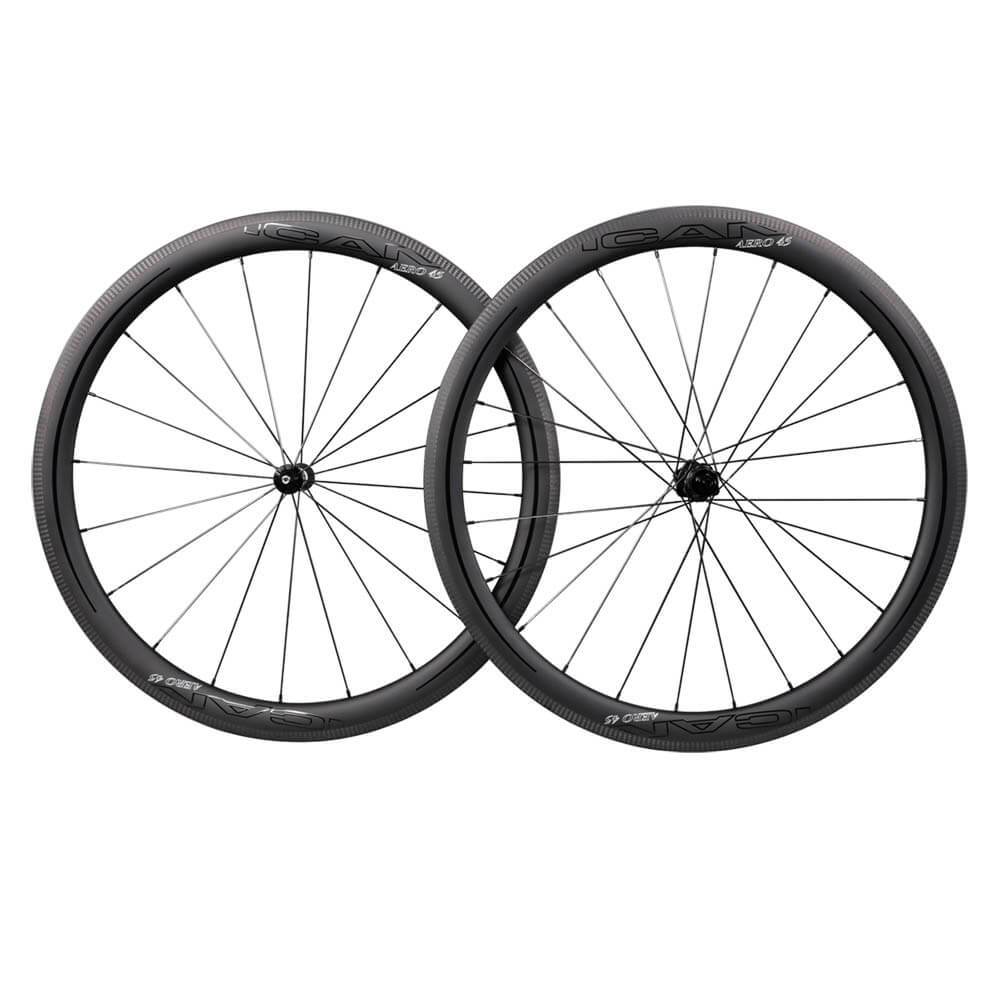

Fancy going faster and making your bike a little bit lighter? Doesn’t everyone? That is why we created our Aero 45 and to make it just that little bit sweeter we offer you the wheelset with your choice of DT Swiss hubs.

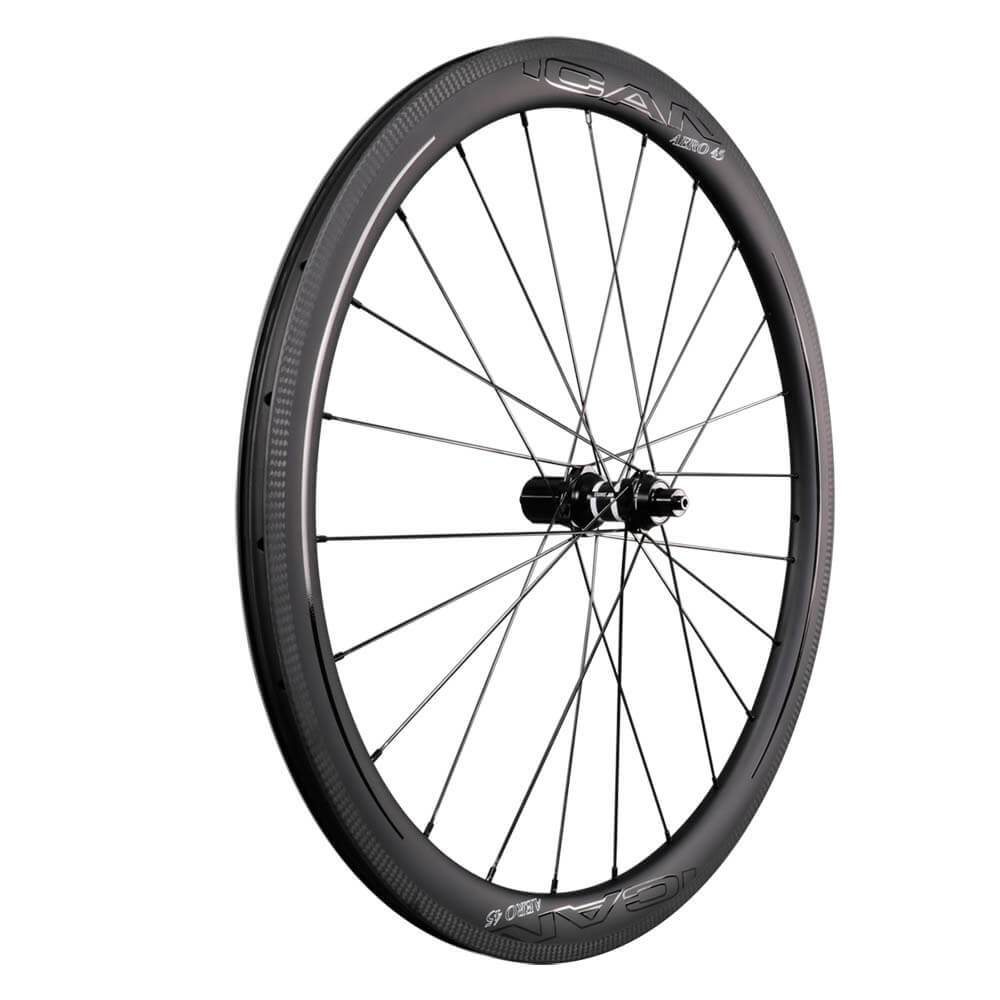

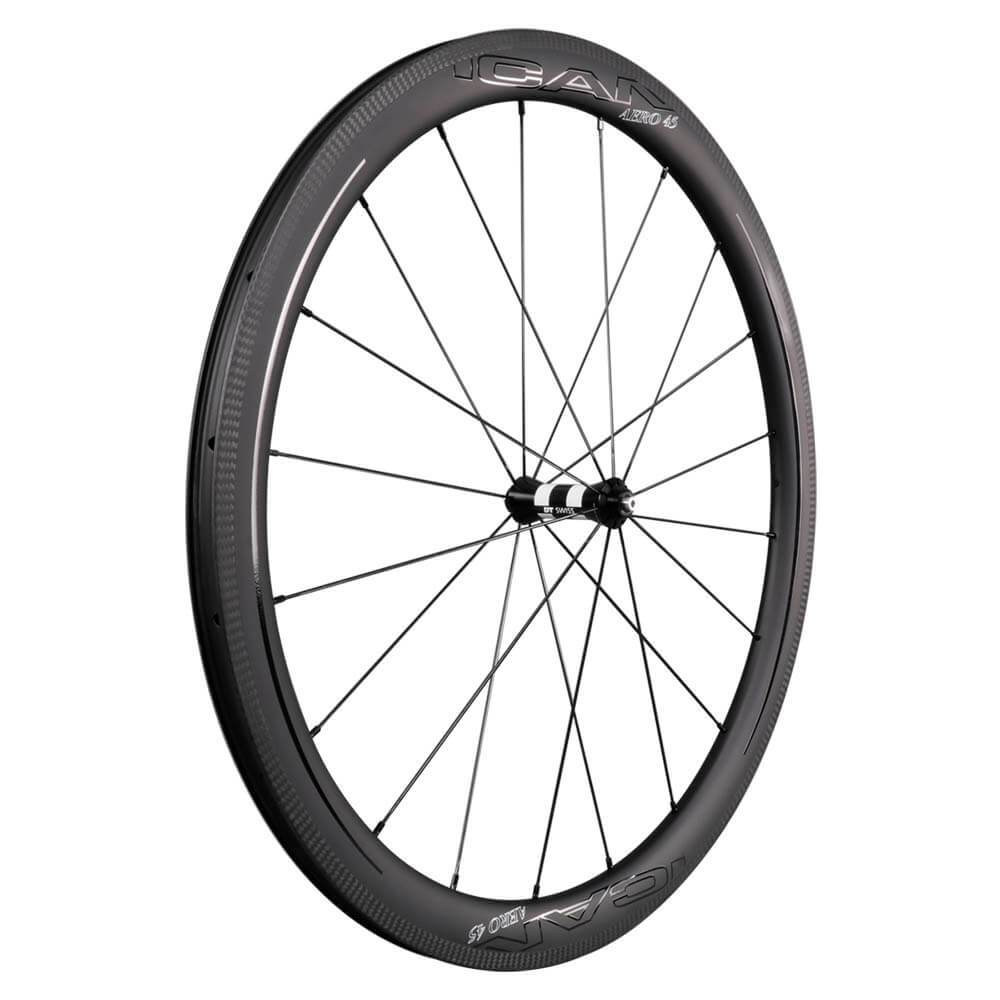

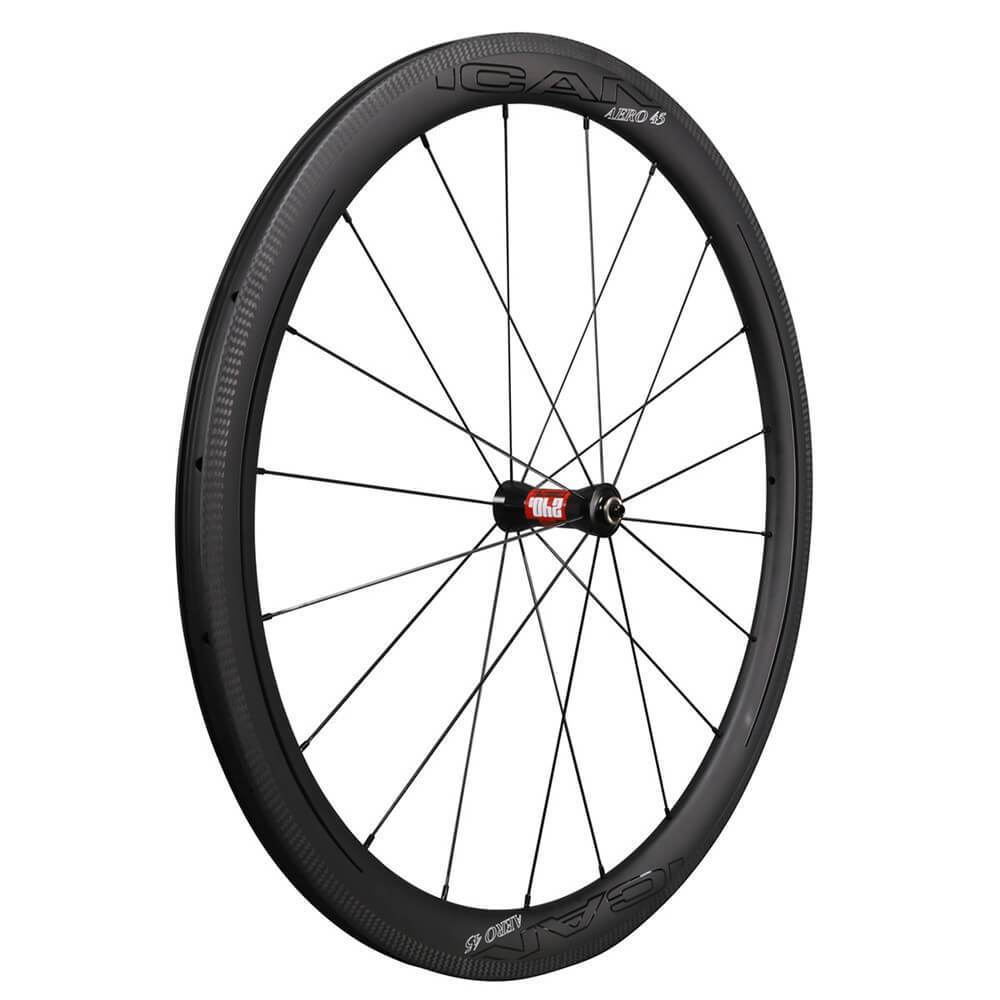

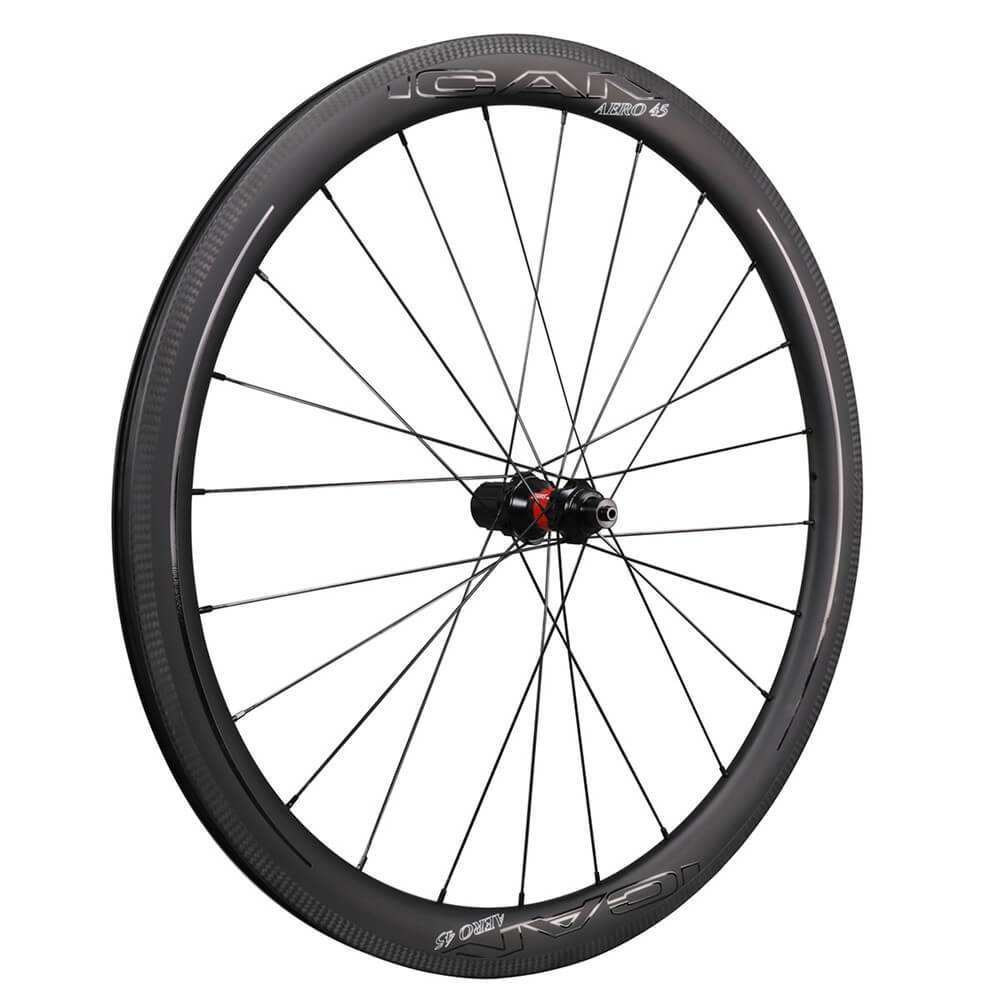

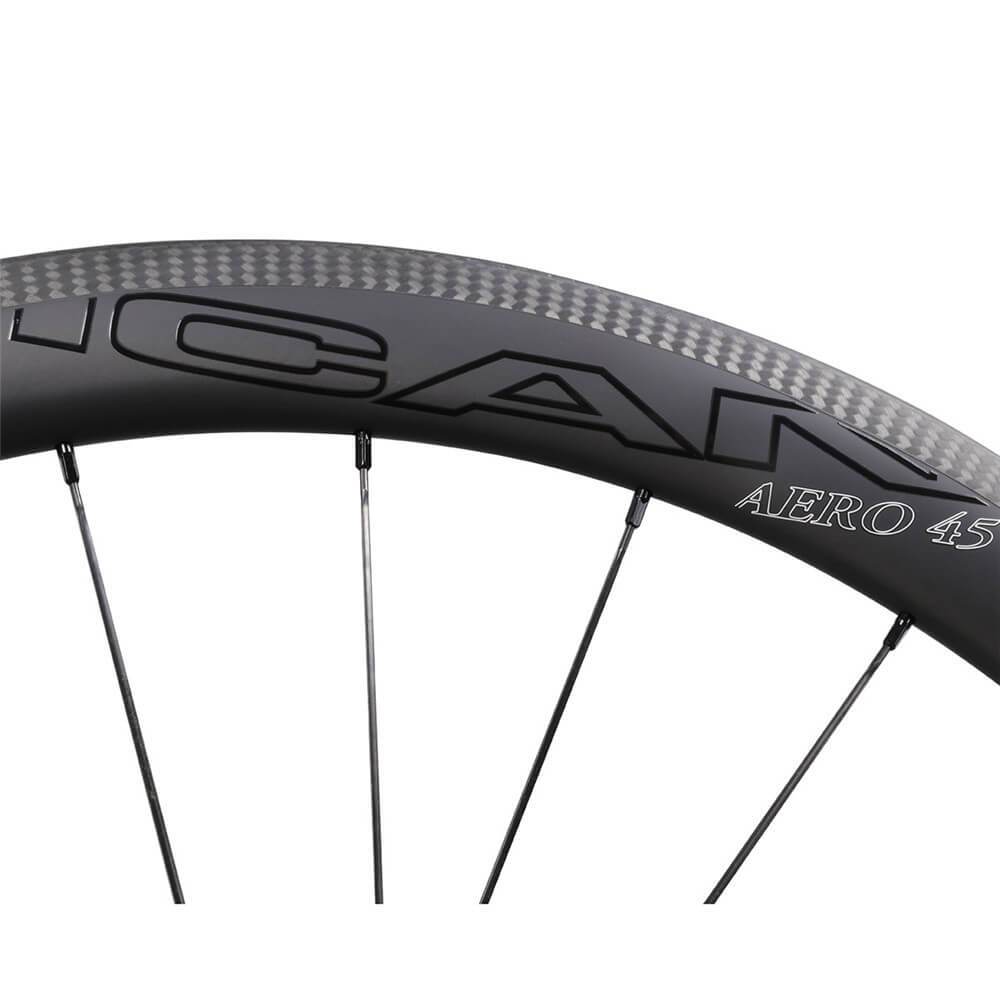

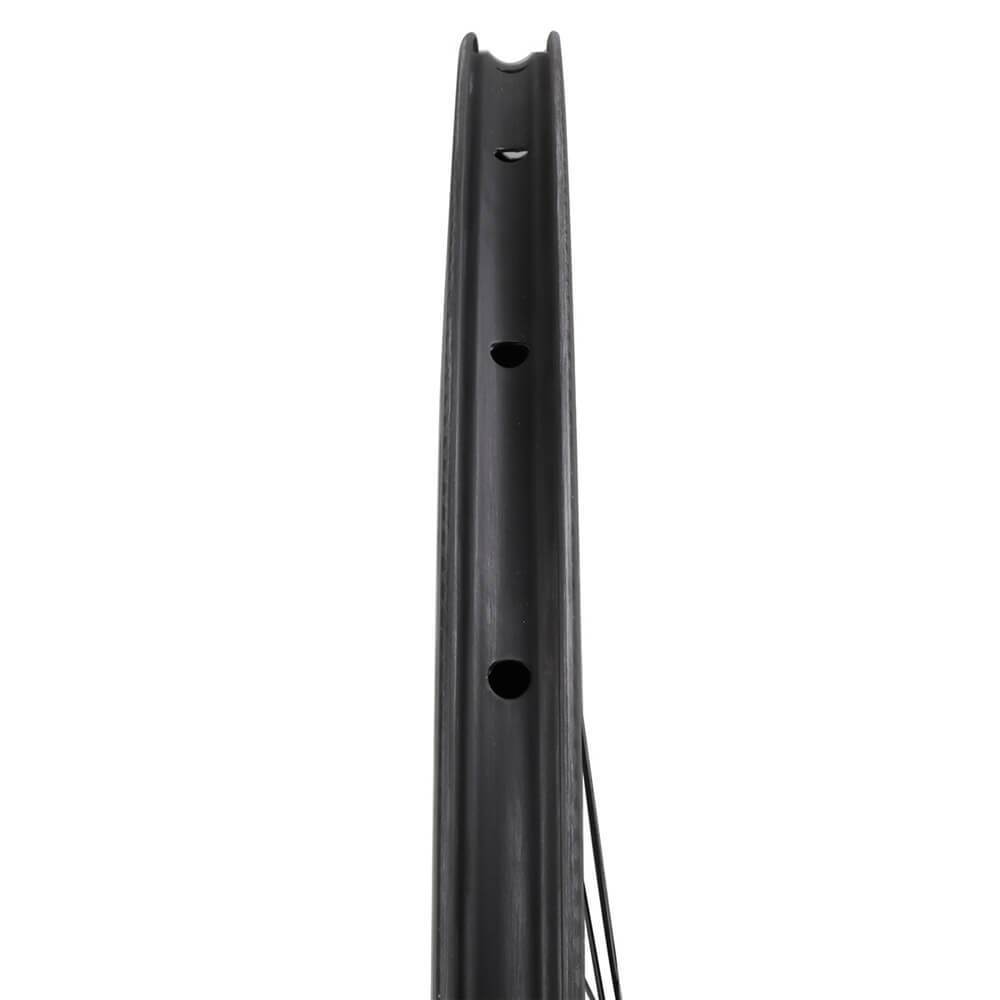

Our Aero 45 is a beast of a rim. It takes our Fast and Light rim keeps its strengths and then lowers its weight by around 100g per wheelset. So you still get a wide tubeless ready aero shape that is strong and stiff, but you have less rotational weight to push around.
We lowered the weight by changing our carbon fiber layup. The FL series rim was constructed solely from Toray T700. Our new Aero rim is constructed using a mix of Toray T700 and T800, that wa show we could lose weight and still have a stiff wheelset.
As you’ll be going faster, we have also beefed up the brake track. The FL series rim could withstand temperatures of 240°. The Aero rim withstands temperatures of up to 300°, making it the ideal choice for a summer getaway to the Alps.

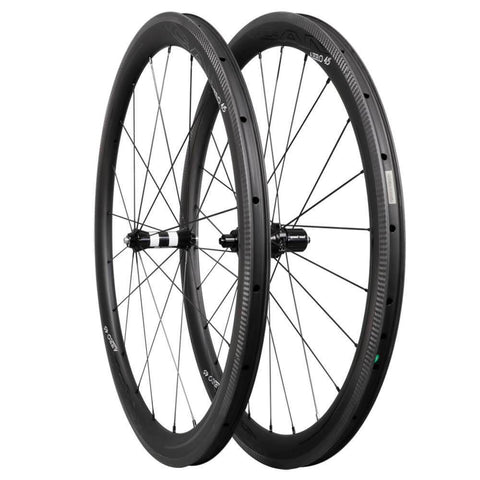

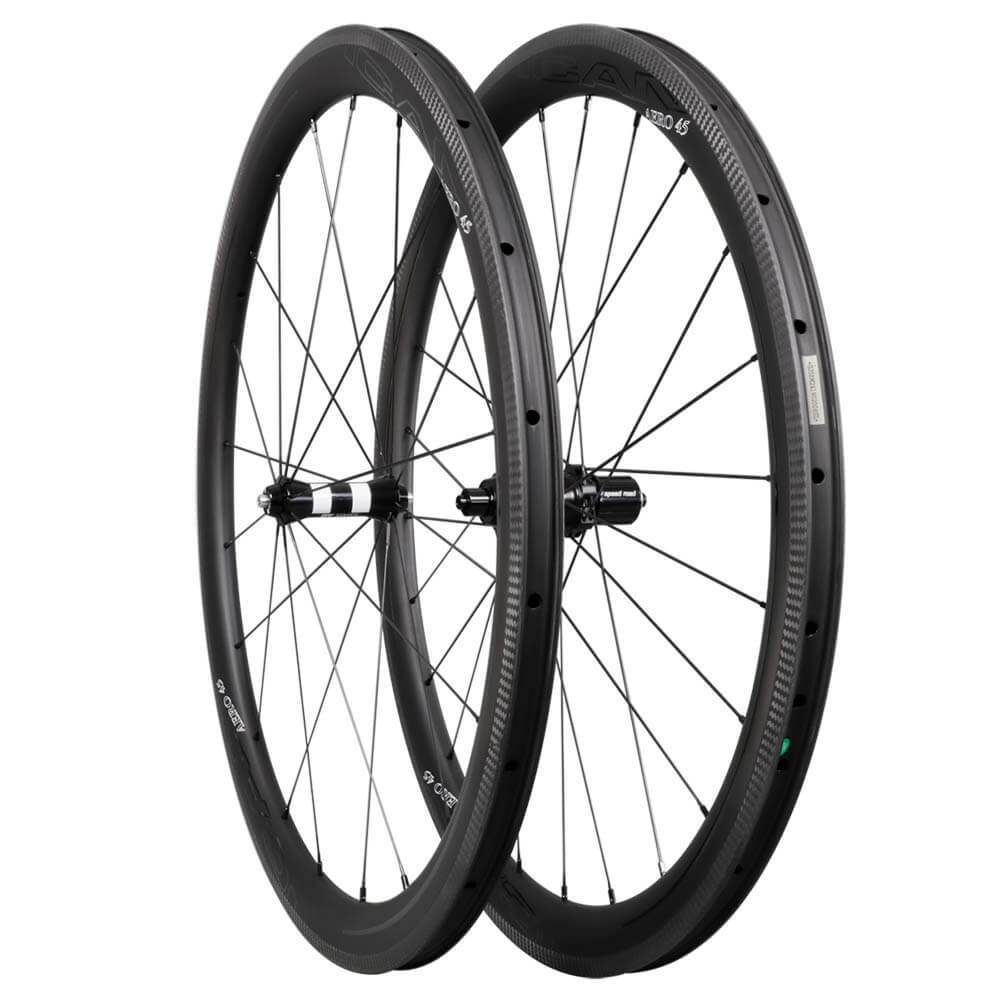

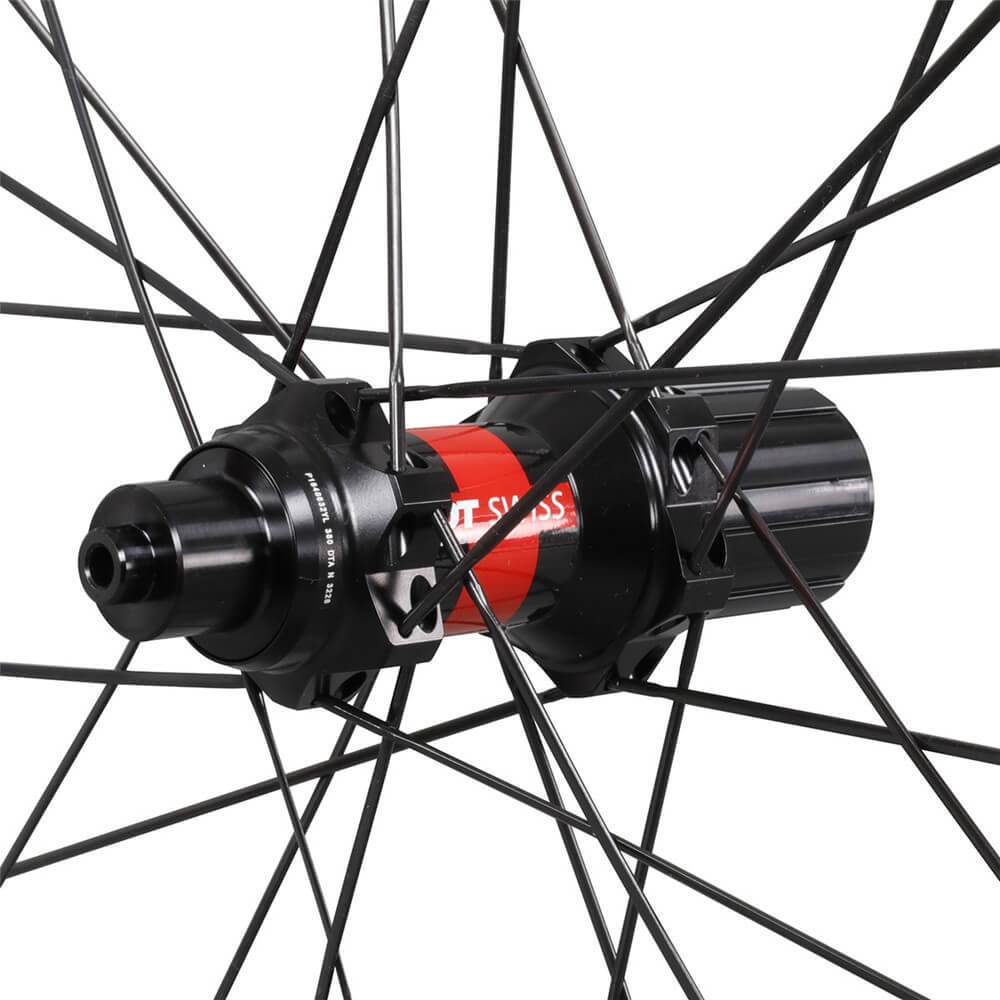

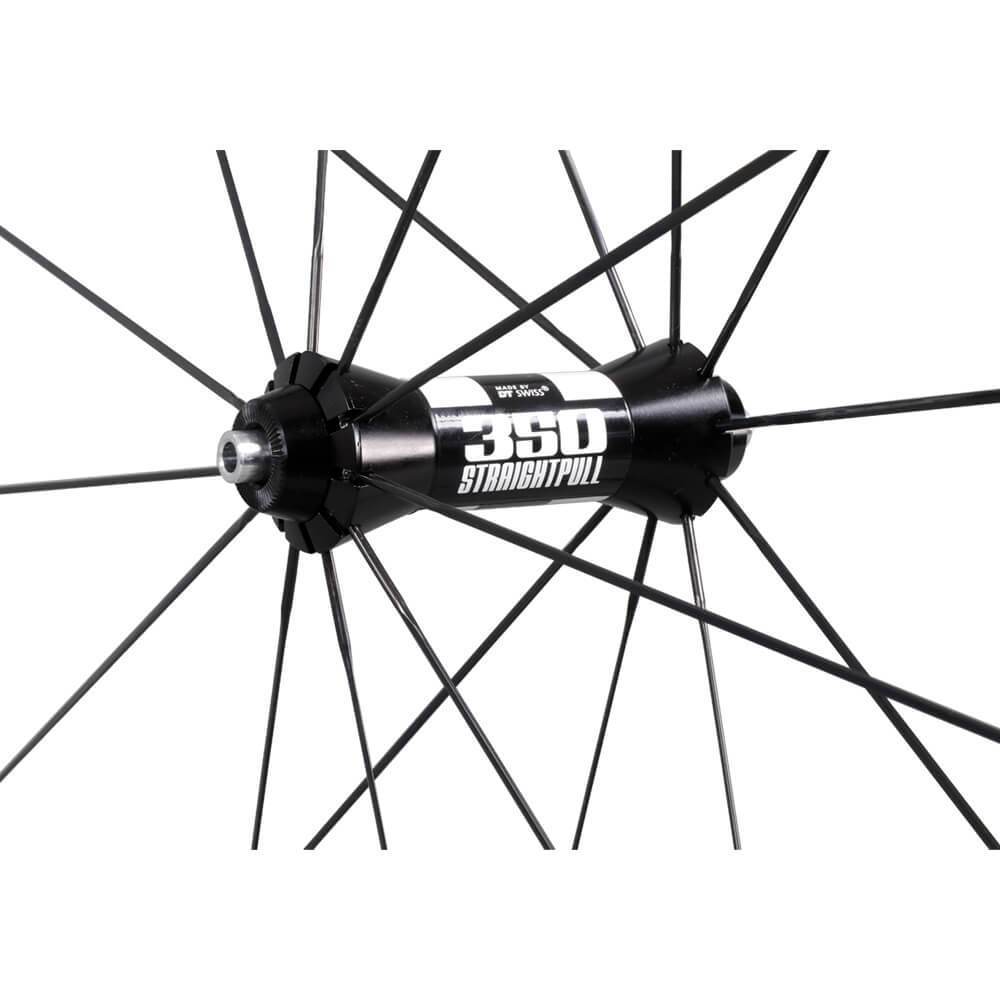

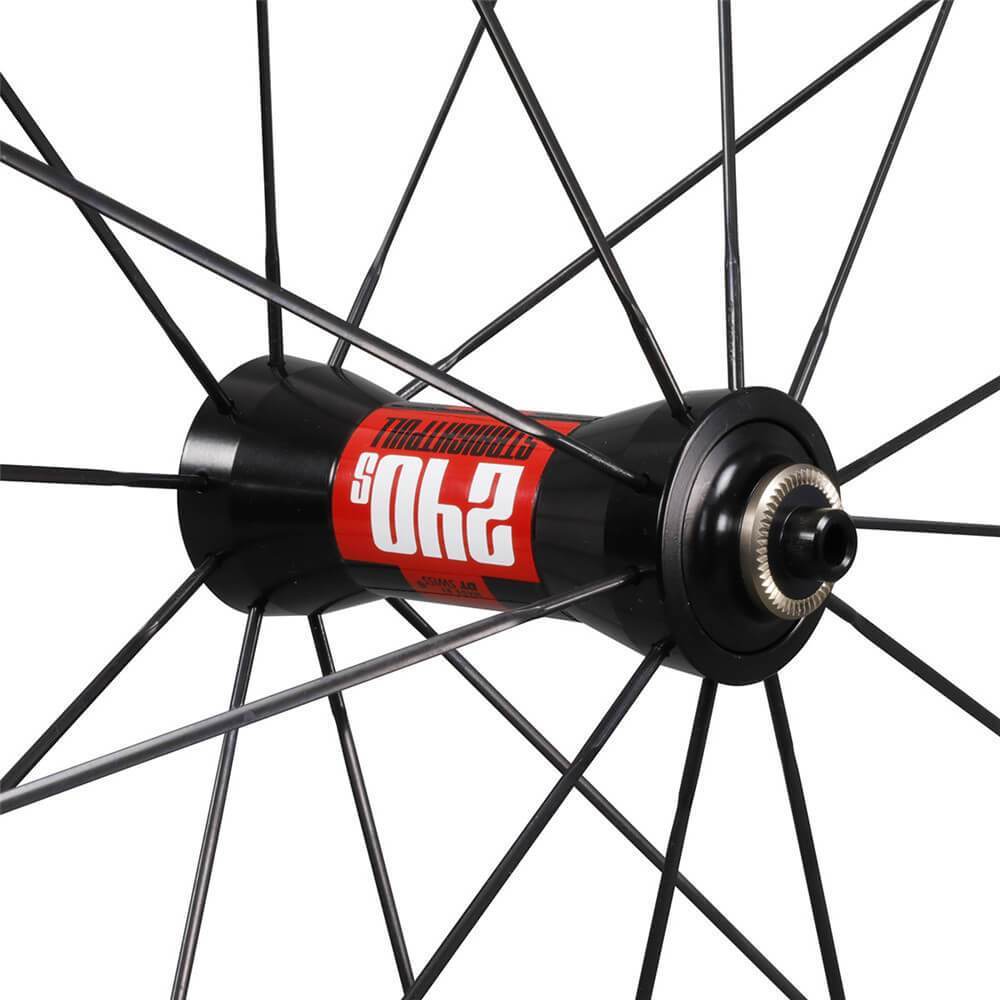

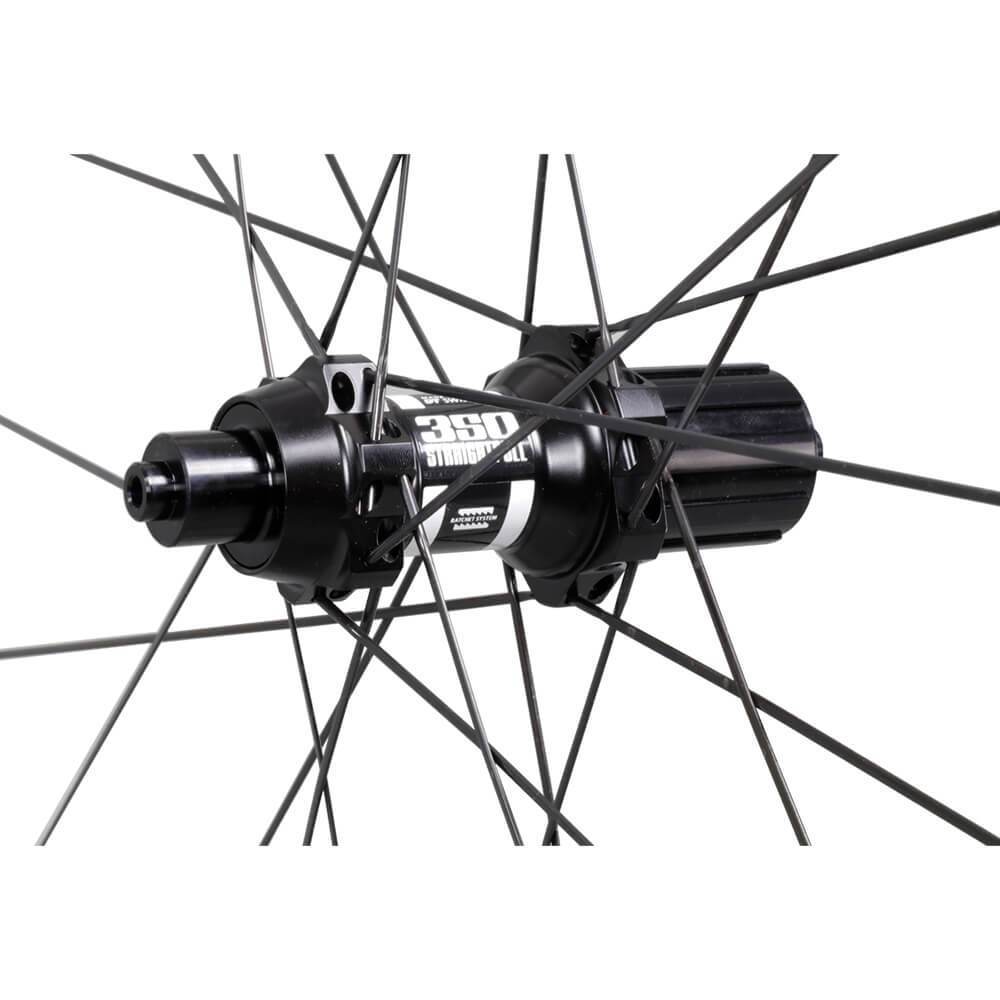

To go with our new rim, you can pick from either the DT Swiss 240S or their 350S hubset. Both hubs feature the legendary DT Swiss drive connection and their high-quality manufacturing. The difference is that the 350S is a more affordable option and the 240S is the lighter option.
To keep your DT Swiss hub at the center of your new Aero wheelset we use Sapim CX-Ray spokes. CX-Ray spokes lead the way in aero spokes that are super light but super strong.
Features
Wide Rim Tech
25mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition. provides an ideal basis for 25/28mm tires, the sizes currently popular.
2-Way Clincher Tubeless. Tubes or No-Tubes
Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.

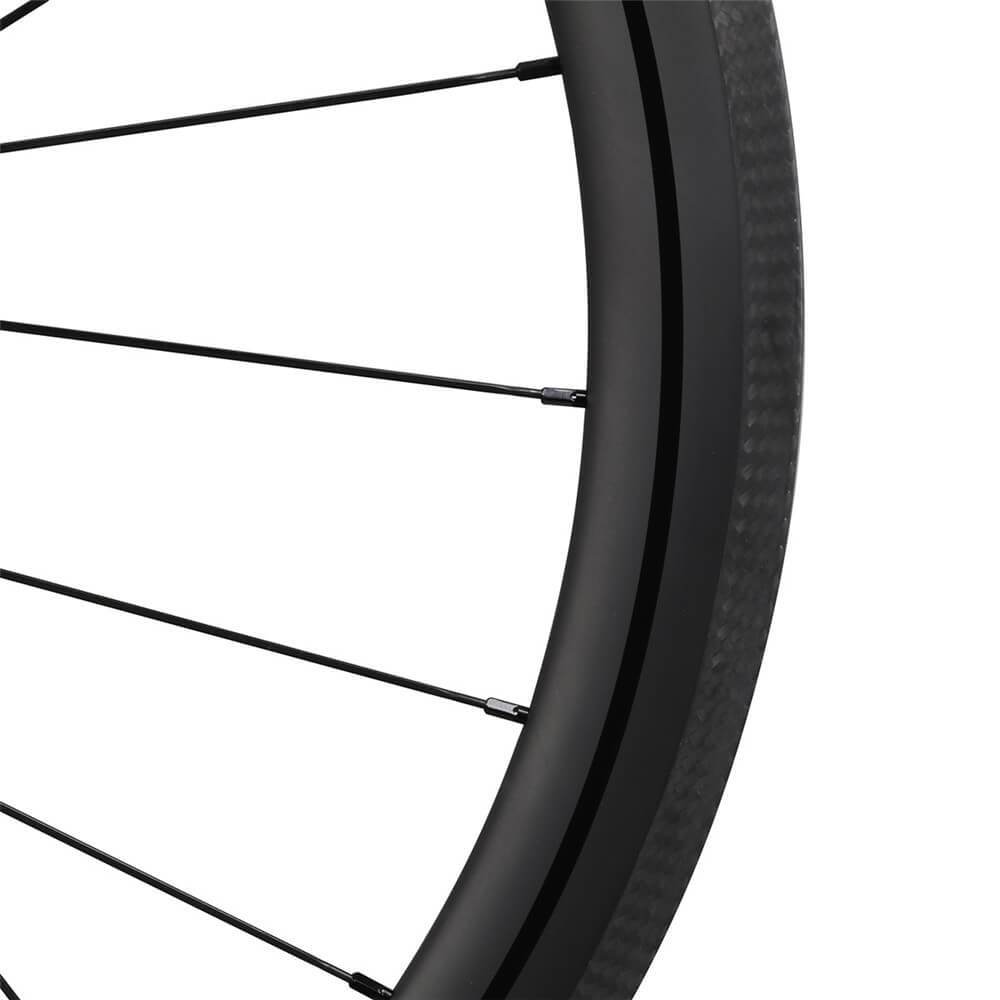

Sapim CX-RAY As light as a titanium spoke
The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.
Specification
Type |
Carbon Racing Bike Wheelset |
Material |
Carbon Fiber Toray T700 & T800 |
Size |
700C |

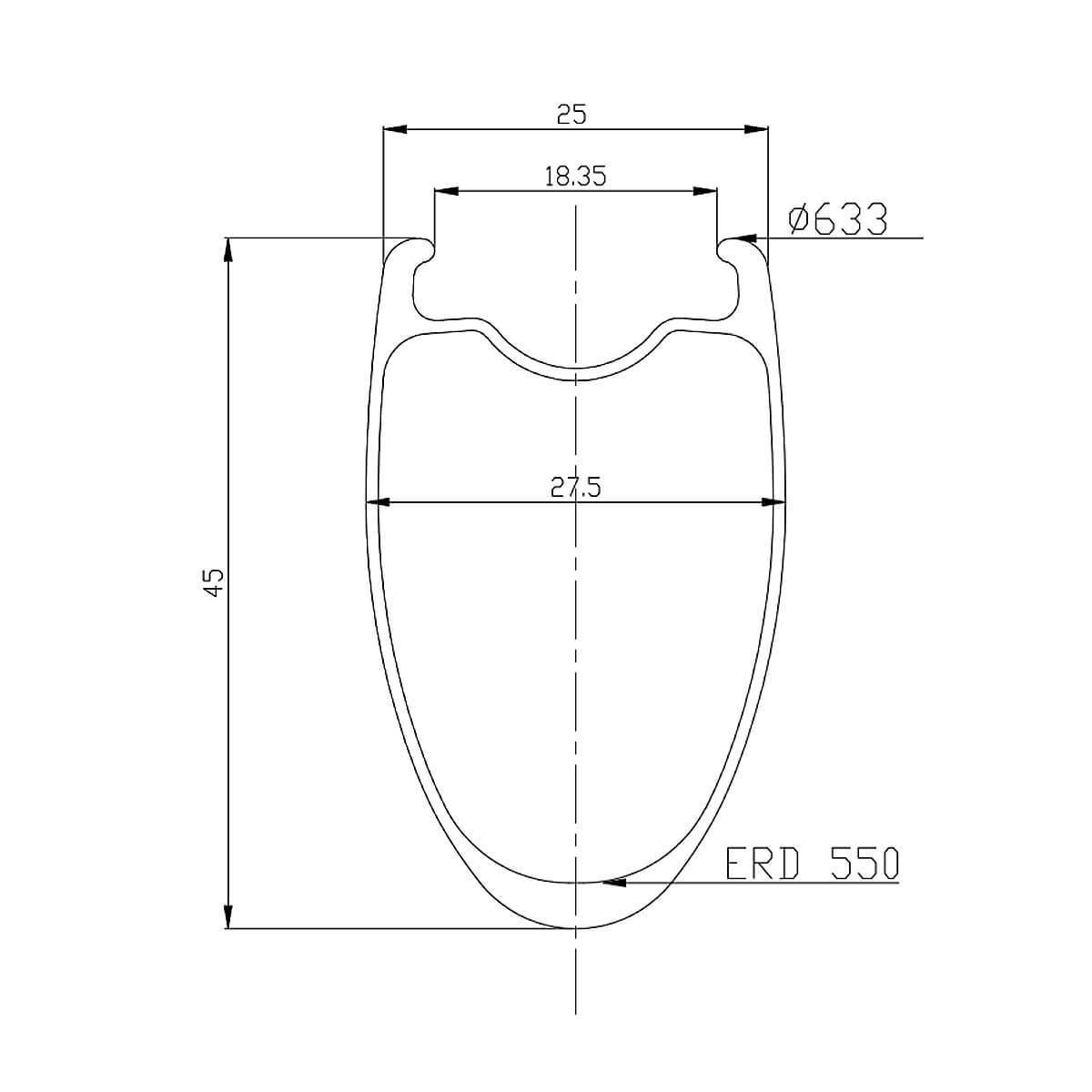

Rim |
Drills: 20/24 Holes Width: External: 25mm
Internal: 18.35mm
|
Depth |
45mm |
Profile |
Clincher Tubeless Ready |
Hub |
DT 240S/350S
|
Spoke |
Sapim CX-Ray Spokes |
Spoke Count |
Front: 20 Rear: 24 |
Spoke Pattern |

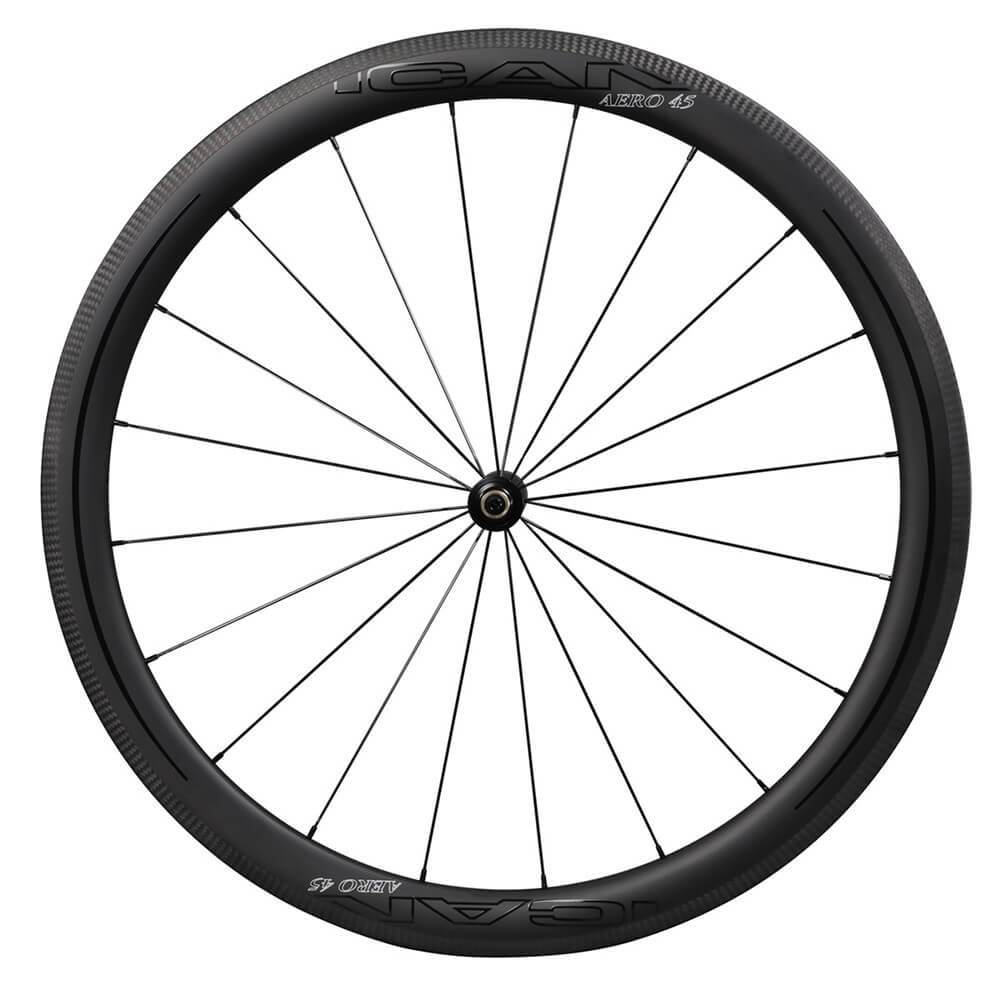

Front: Radial

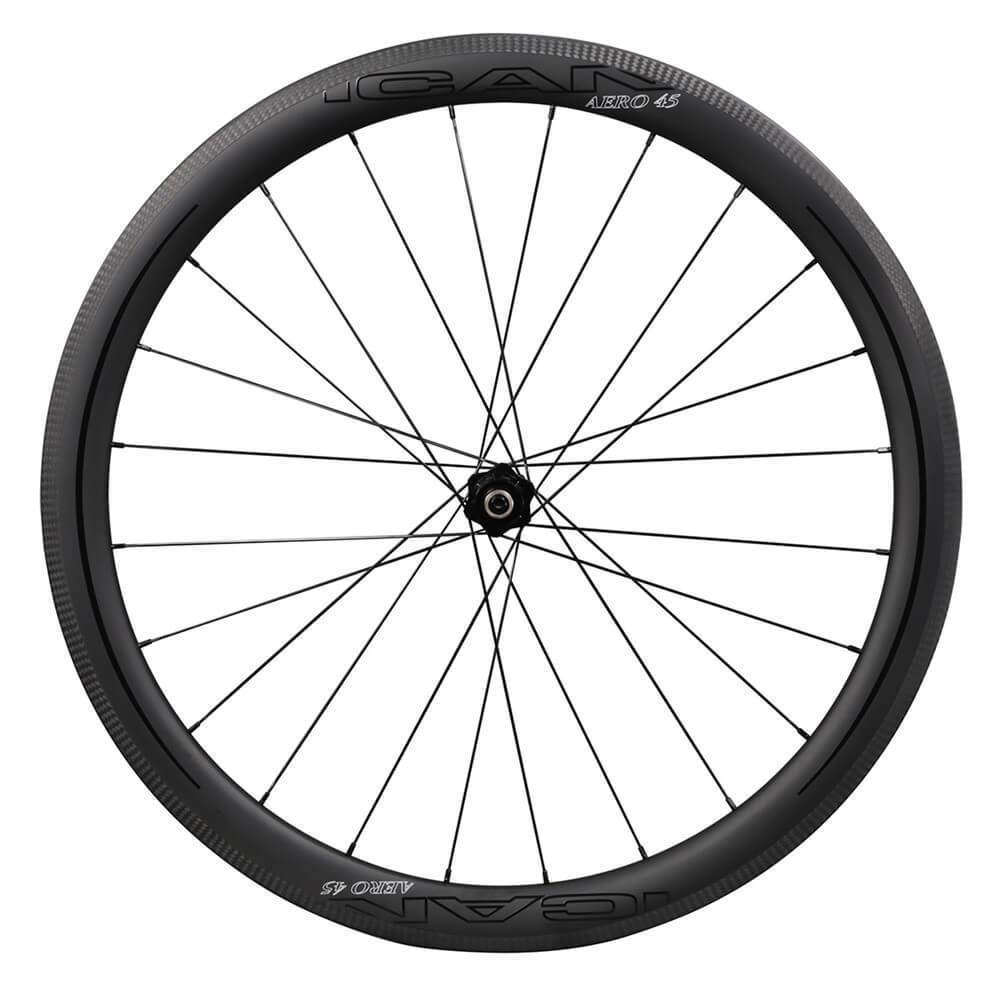

Rear: 2-cross
|
Nipple |
Alloy Color: Black |
Cassette Compatibility |
Shimano 10/11speeds |
Wheelset Weight |
Total: 1407+-20g (DT240S)
Front: 637+-10g Rear: 770+-10g
|
Brake Surface |
3K Twill |
Recommended Tyre Size |
700 x 25-45mm |
Rider Weight Limit |
232lbs/105kg |
Guarantee |
2 years |
Free |
1 set of skewer
Carbon brakes pads
|
Packing Size |
81.5cm x 17cm x 65.5cm |
Recommended Tire Pressure
Below Chart is our recommended tire pressure,you can see more click here.
|
STANDARD CLINCHER TIRE WITH INNER TUBE |
TUBELESS TIRES |
≤ 65 KG RIDER |
23mm - 95/100 psi 25mm - 90/95 psi 28mm - 85/90 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 80/85 psi |
65 - 75 KG RIDER |
23mm - 100/105 psi 25mm - 95/100 psi 28mm - 90/95 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 85/90 psi |
75 - 85 KG RIDER |
23mm - 101/106 psi 25mm - 96/101 psi 28mm - 91/96 psi |
23mm - 95/98 psi 25mm - 90/95 psi 28mm - 85/90 psi |
85 - 95 KG RIDER |
23mm - 104/109 psi 25mm - 99/104 psi 28mm - 94/100 psi |
23mm - 95/99 psi 25mm - 90/95 psi 28mm - 88/95 psi |
IMPORTANT - Please check, and never exceed, the maximum recommended tire pressures on the side of your tire.
