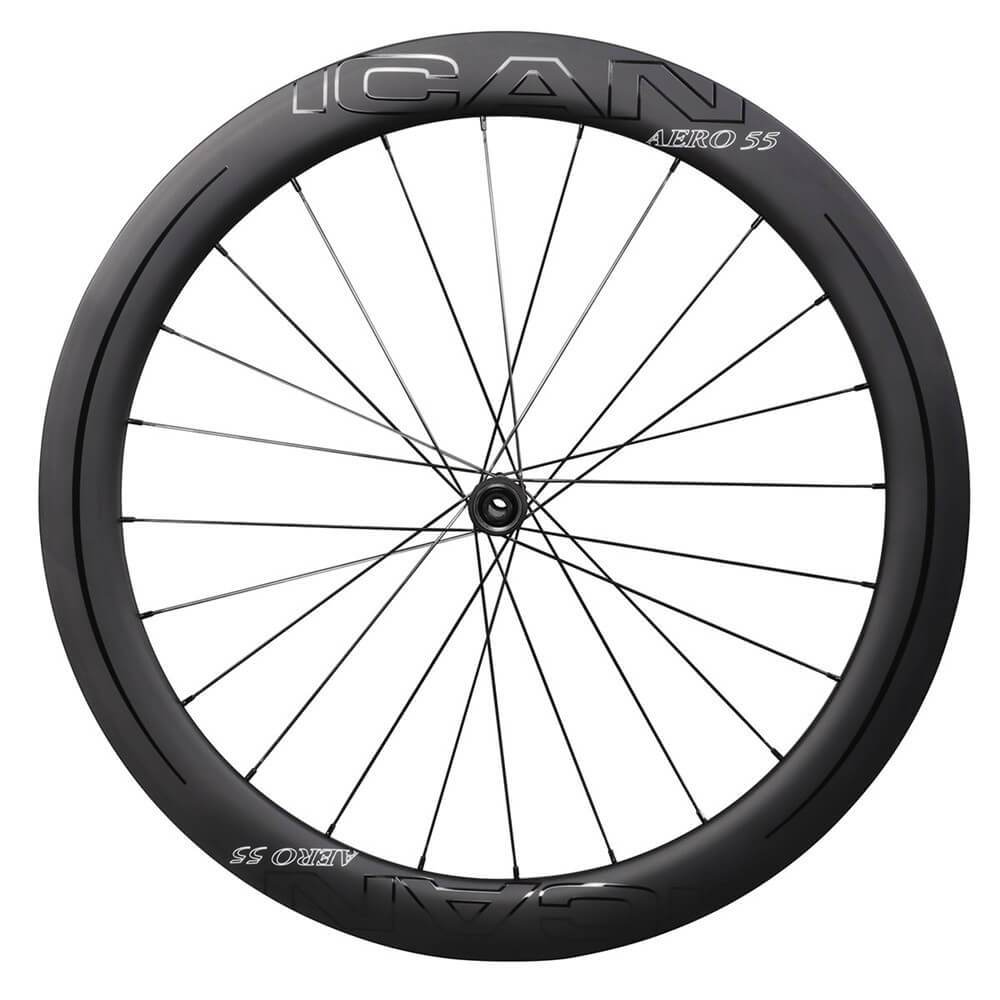

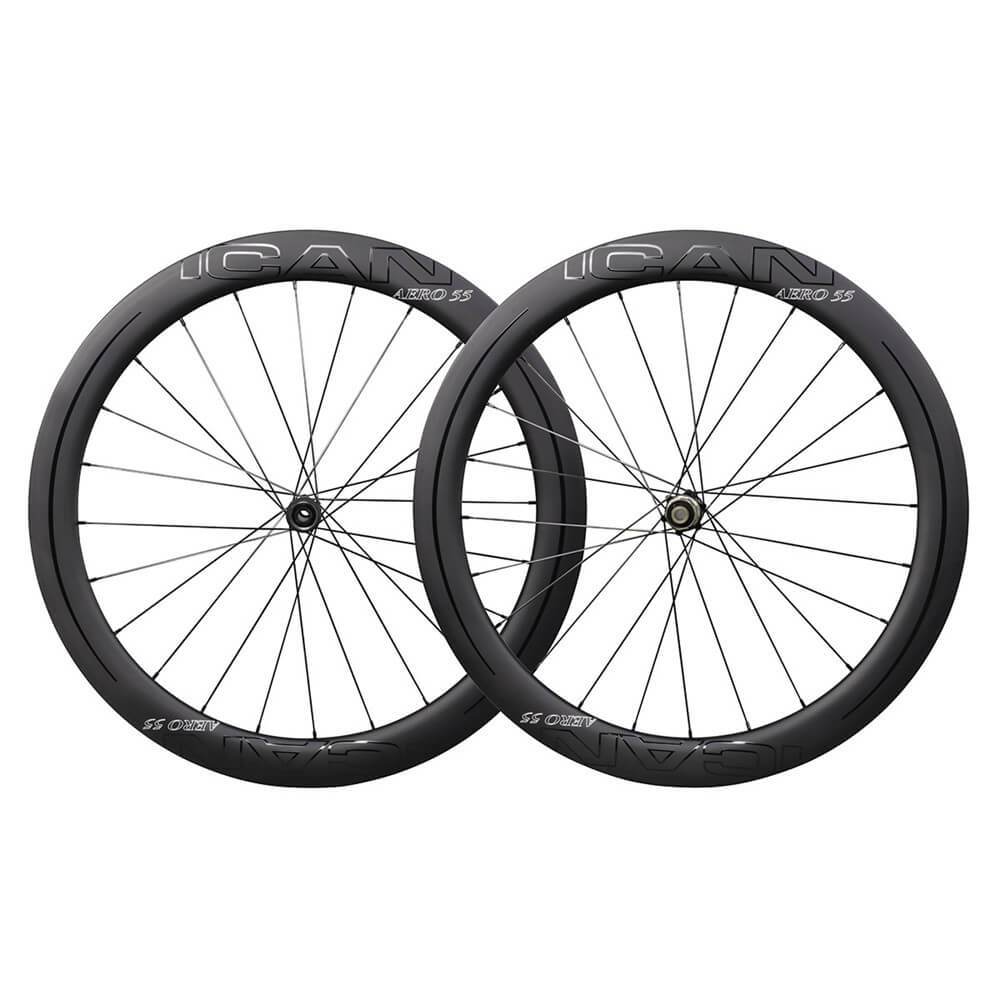

Everyone wants to go fast for less effort, and that is why we created for you deep section carbon fiber wheels. Our Aero 55 disc wheelset is the ideal wheelset if you want great aero gains while still being able to ride on windy days.
Our new Aero range is built off the back of our highly successful Fast and Light series of wheels. We knew we had to keep the new Aero range just as stiff, just as strong, still tubeless ready but we wanted to make them lighter. We mad them lighter by changing our carbon fiber layup.
Instead of using solely Toray T700 as we did on our FL series, we now use a mix of carbon fiber in the layup process. We mix Toray T700 with T800 carbon fiber cloth, and that allowed us to reduce the wheelset’s weight by around 100g, while still keeping all the other great qualities of the FL series.

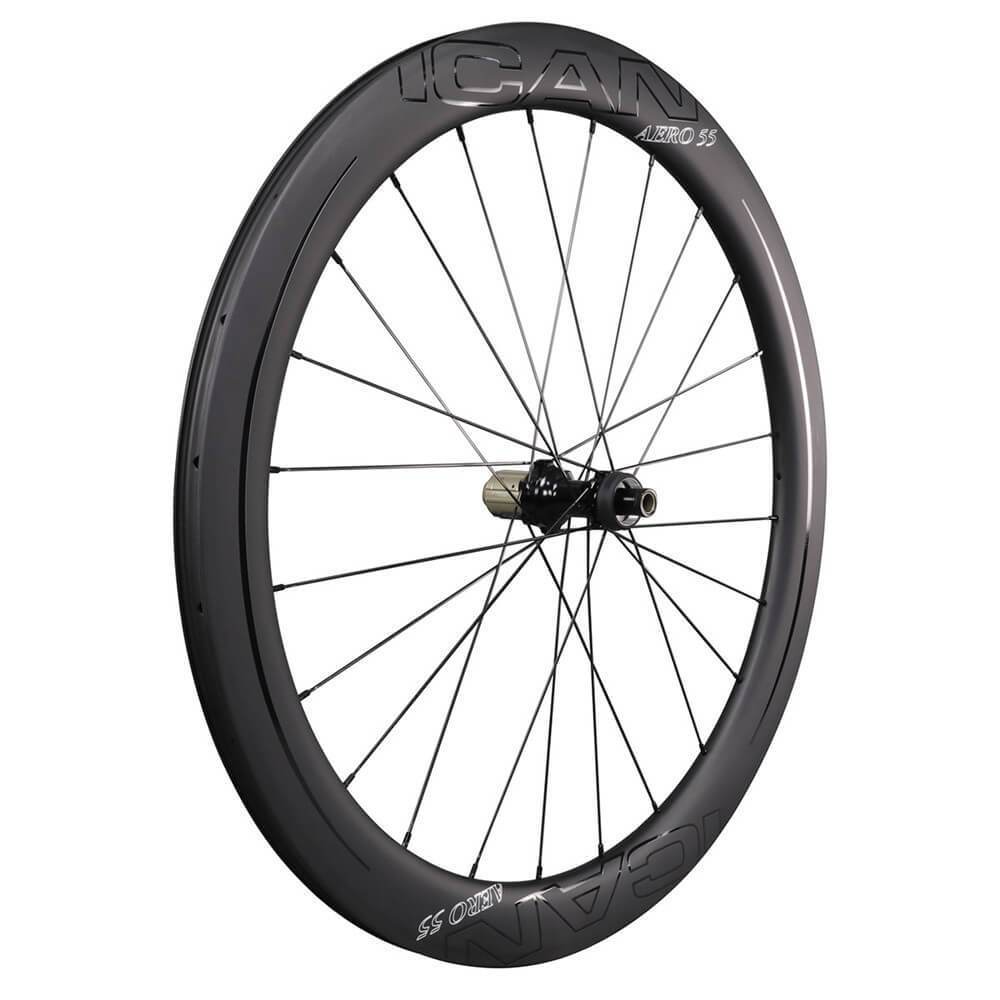

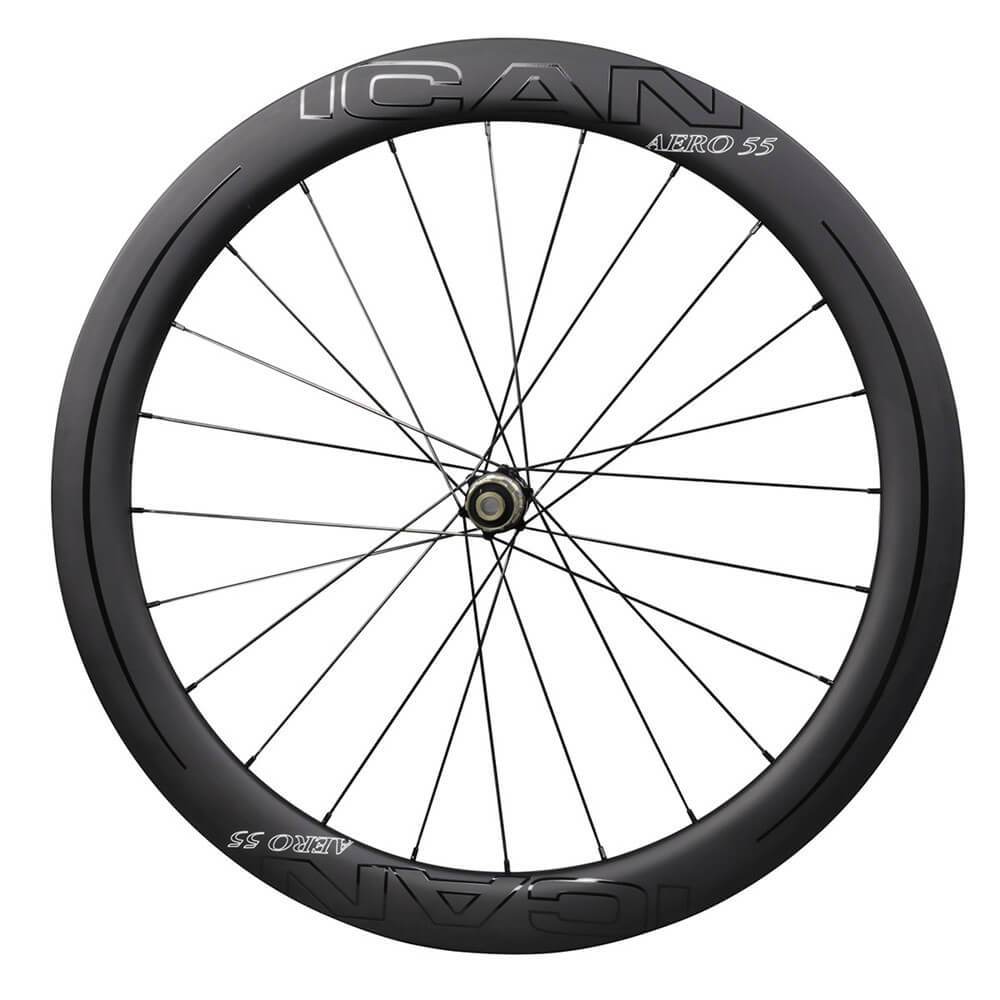

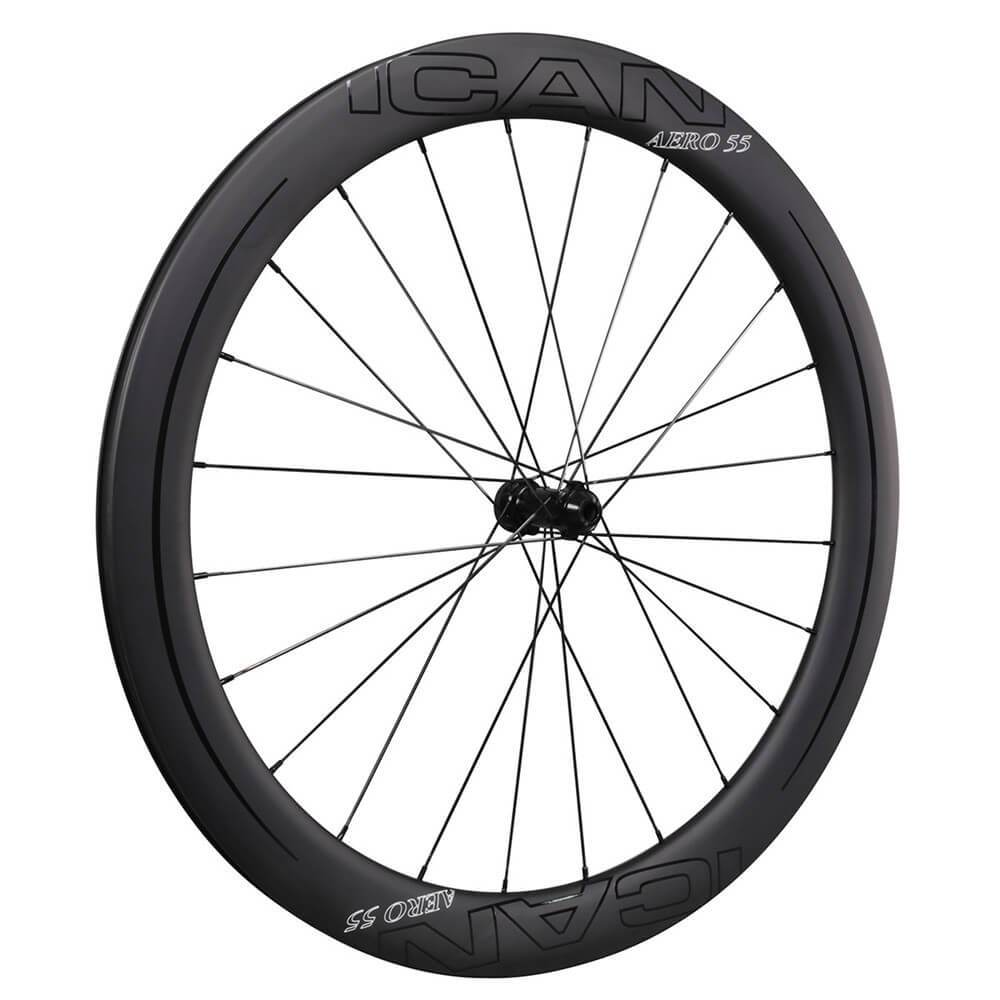

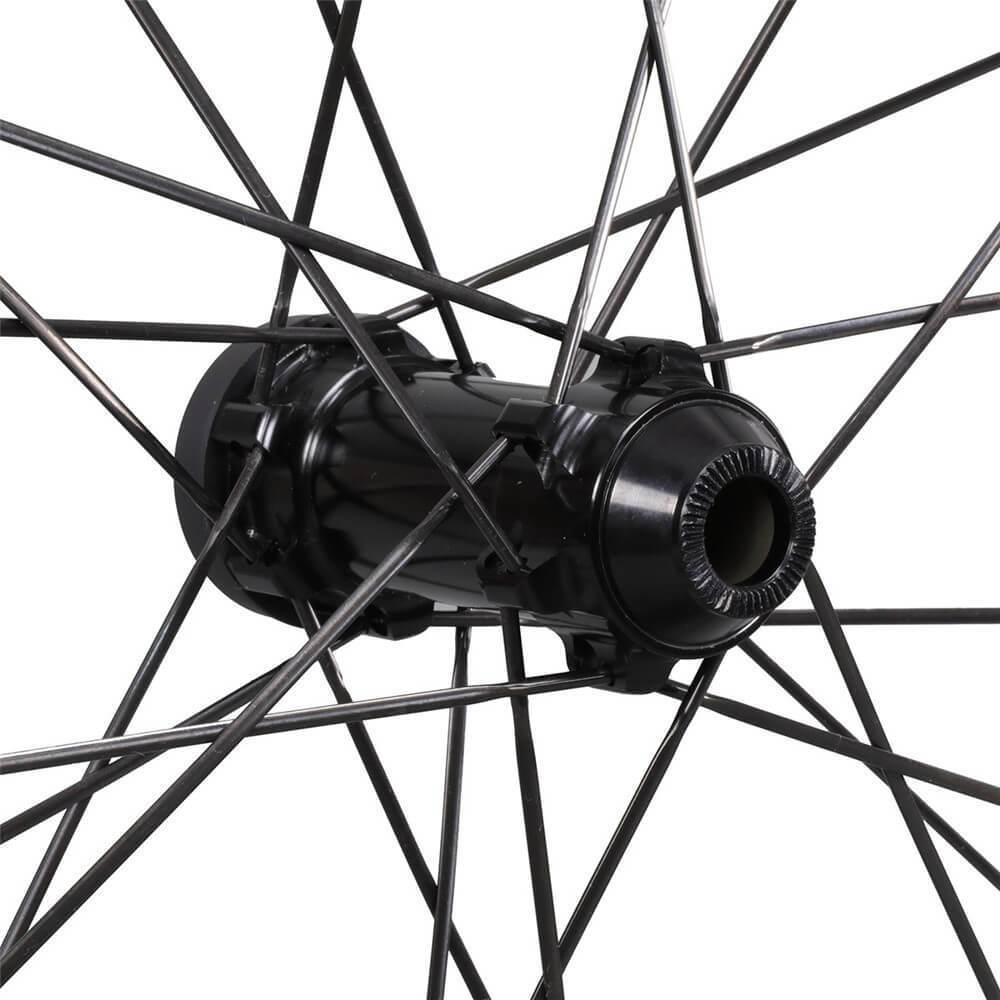

It is just not the rim that is new. We have also created a new disc brake hub, the ICAN D01 hubset. The new hubset is lighter than the hubs we previously used and is available in both Centerlock and 6-bolt fitment so you can be sure to fit your rotors on there. Axle wise we have gone with thru axles. Thru axles allow us to build you a stiffer wheelset and you’ll find we have gone for 100 x 12mm at the front and 142 x 12mm at the rear.
We finished the wheelset off by lacing it with Sapim CX-Ray spokes. Sapim have been making great spokes for over a century now, and we feel their knowledge for making light, and strong spokes is unparalleled.
Features
Wide Rim Tech

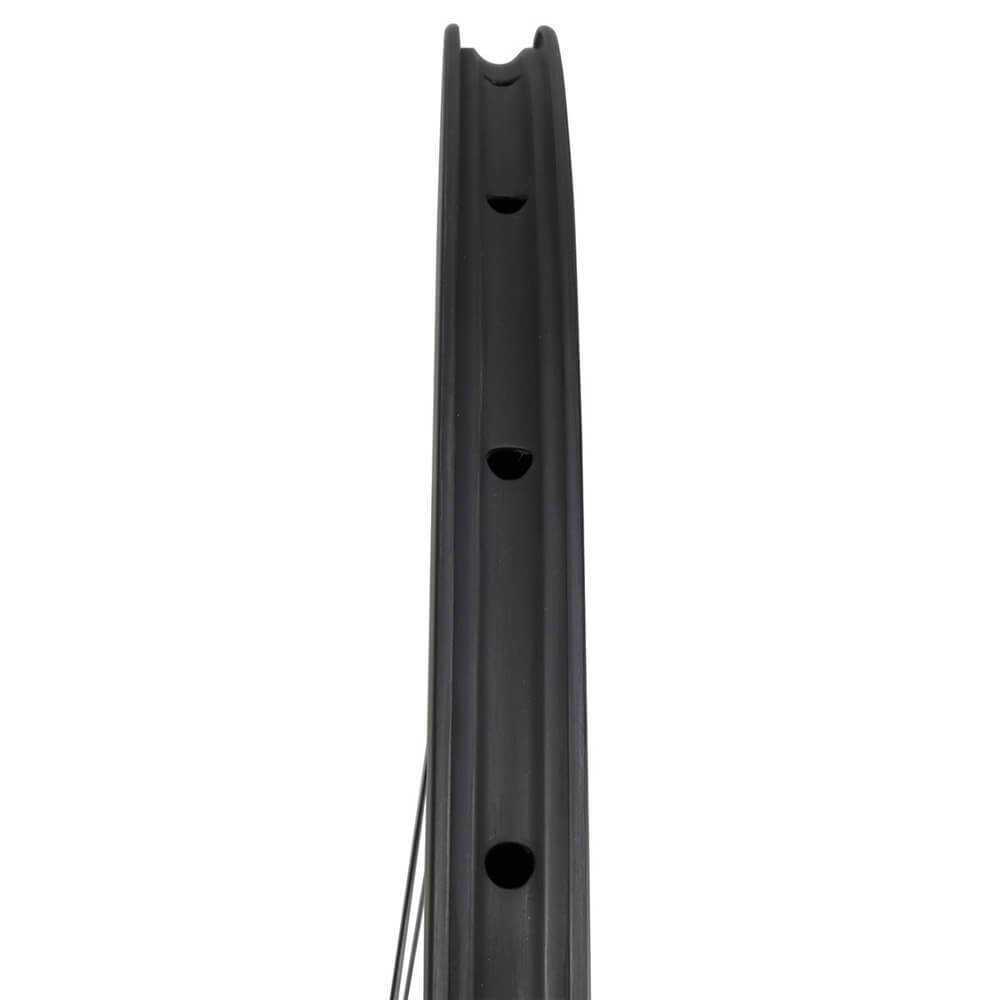

25mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition. provides an ideal basis for 25/28mm tires, the sizes currently popular.
2-Way Clincher Tubeless. Tubes or No-Tubes
Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.
Sapim CX-RAY As light as a titanium spoke
The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.
UCI Approved
This wheelset has been certified and approved by the UCI (Union Cycliste Internationale), for use in UCI sanctioned road races.
Specification
Type |
Carbon Racing Bike Wheelset |
Material |
Toray T700 & T800 |
Size |
700C |
Rim |

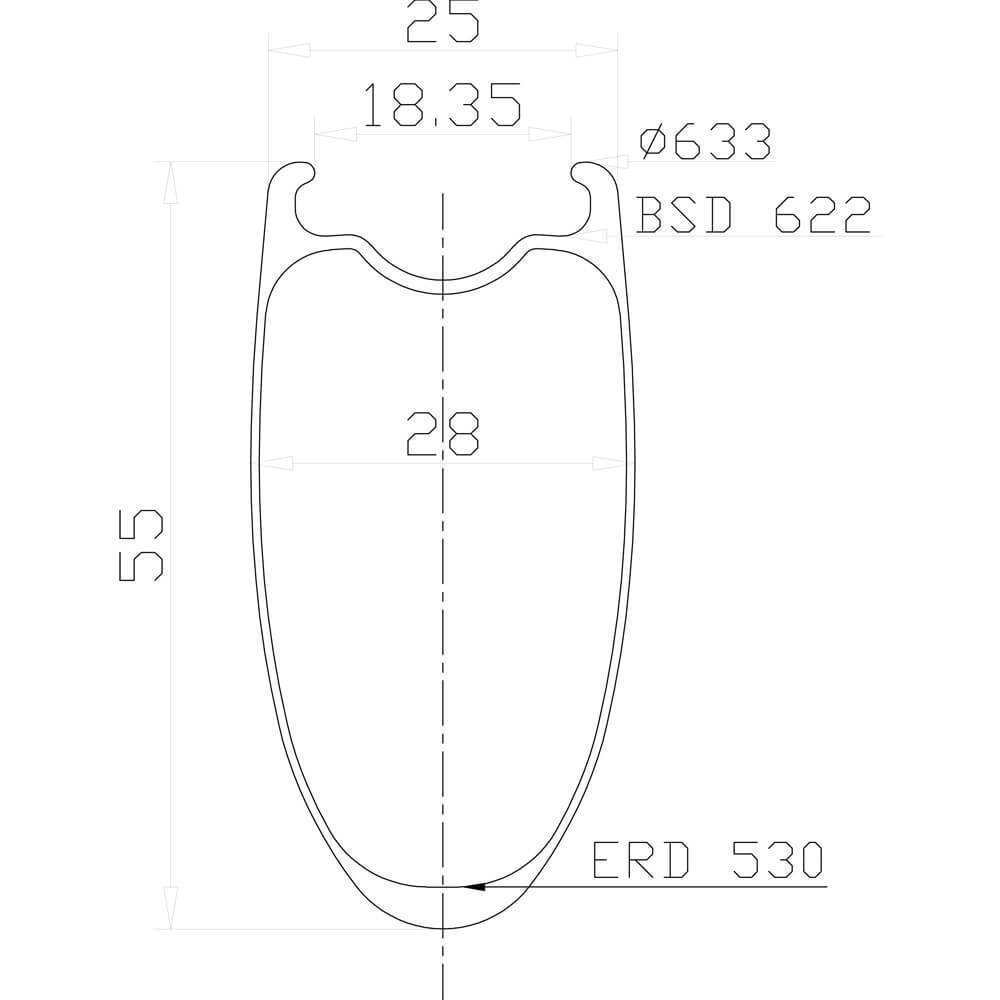

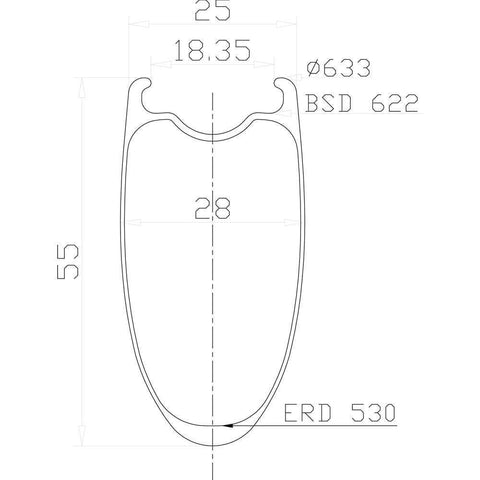

Finish: UD Matt Drills: 24/24 Holes Width: External: 25mm
Internal: 18.35mm
|
Depth |
55mm |
Profile |
Clincher Tubeless Ready |
Hub |
D01 Hubs
|
Disc Type |
Centerlock/6 Bolts |
Spoke |
Sapim CX-Ray Spokes
|
Spoke Count |
Front: 24 Rear: 24 |
Spoke Pattern |
Front: 2-cross
Rear: 2-cross
|
Nipple |
Alloy Color: Black |
Cassette Compatibility |
Shimano 10/11speeds |
Wheelset Weight |
Total: 1467+-20g (Centerlock, 12x100/12x142mm)
Front: 657+-10g Rear: 810+-10g
|
Brake Surface |
No Braking Surface
|
Recommended Tyre Size |
700 x 25-45mm
|
Rider Weight Limit |
242lbs/110kg
|
Guarantee |
2 years |
Free |
1 set of skewer
|
Packing Size |
81.5cm x 17cm x 65.5cm |
Recommended Tire Pressure
Below Chart is our recommended tire pressure,you can see more click here.
|
STANDARD CLINCHER TIRE WITH INNER TUBE |
TUBELESS TIRES |
≤ 65 KG RIDER |
23mm - 95/100 psi 25mm - 90/95 psi 28mm - 85/90 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 80/85 psi |
65 - 75 KG RIDER |
23mm - 100/105 psi 25mm - 95/100 psi 28mm - 90/95 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 85/90 psi |
75 - 85 KG RIDER |
23mm - 101/106 psi 25mm - 96/101 psi 28mm - 91/96 psi |
23mm - 95/98 psi 25mm - 90/95 psi 28mm - 85/90 psi |
85 - 95 KG RIDER |
23mm - 104/109 psi 25mm - 99/104 psi 28mm - 94/100 psi |
23mm - 95/99 psi 25mm - 90/95 psi 28mm - 88/95 psi |
IMPORTANT - Please check, and never exceed, the maximum recommended tire pressures on the side of your tire.
