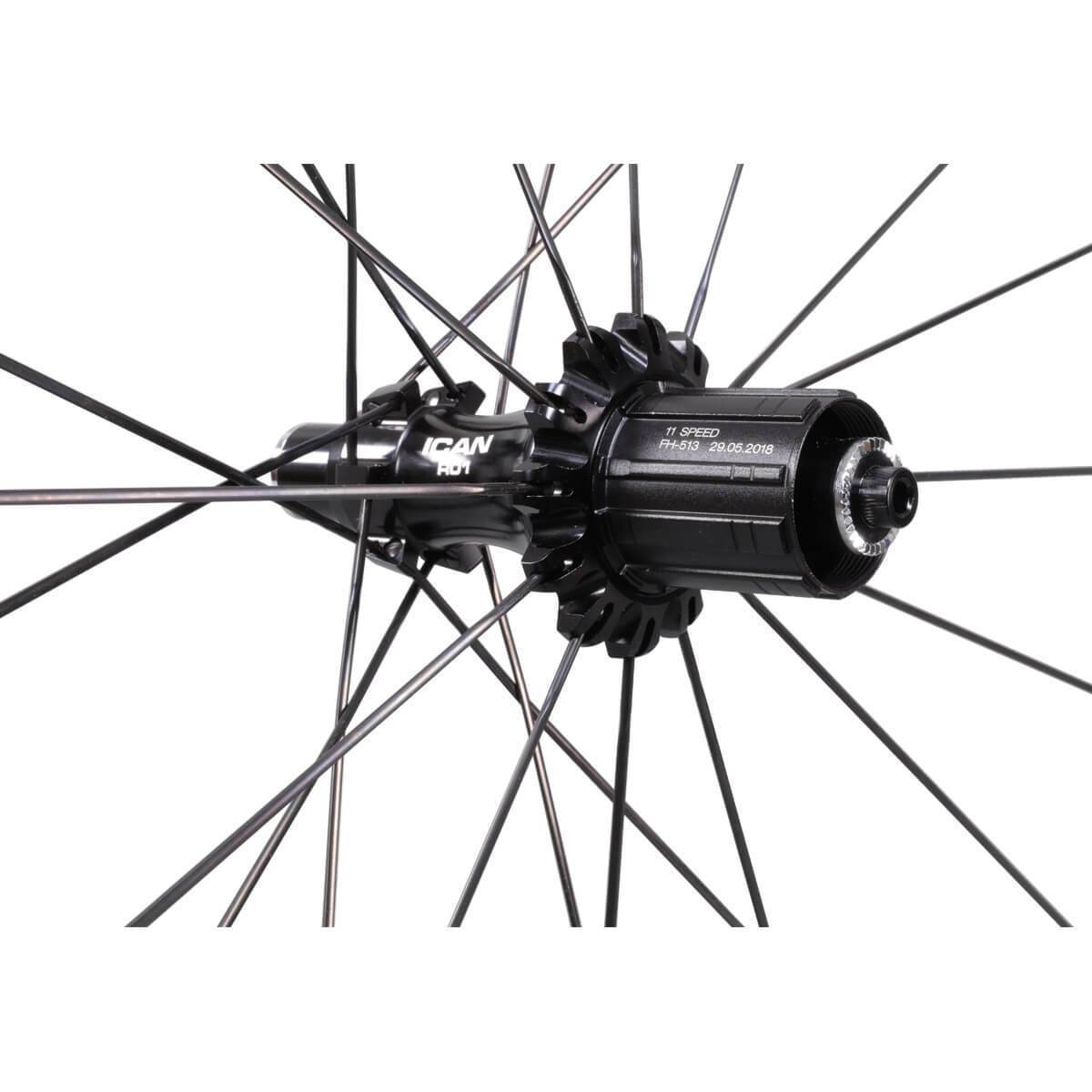

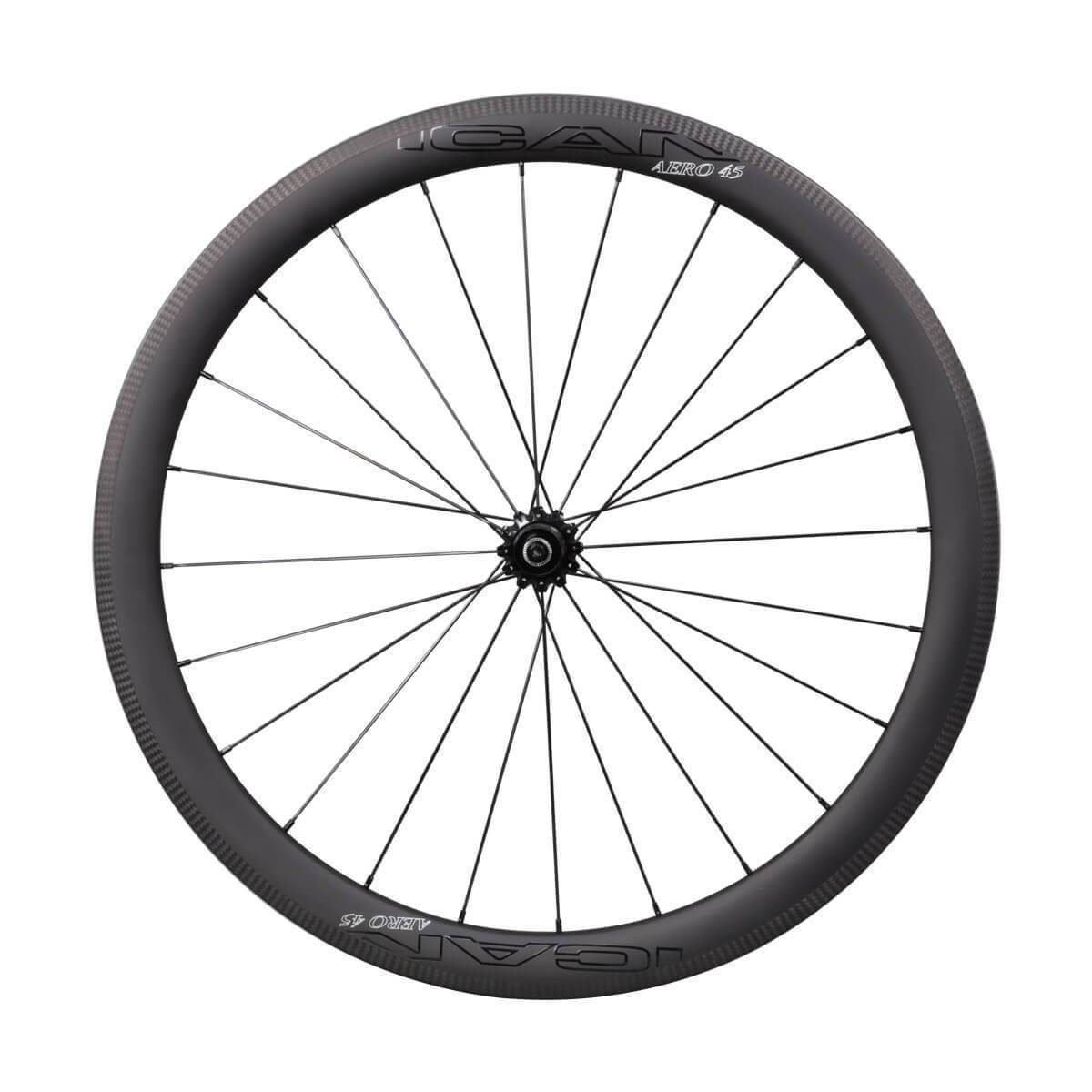

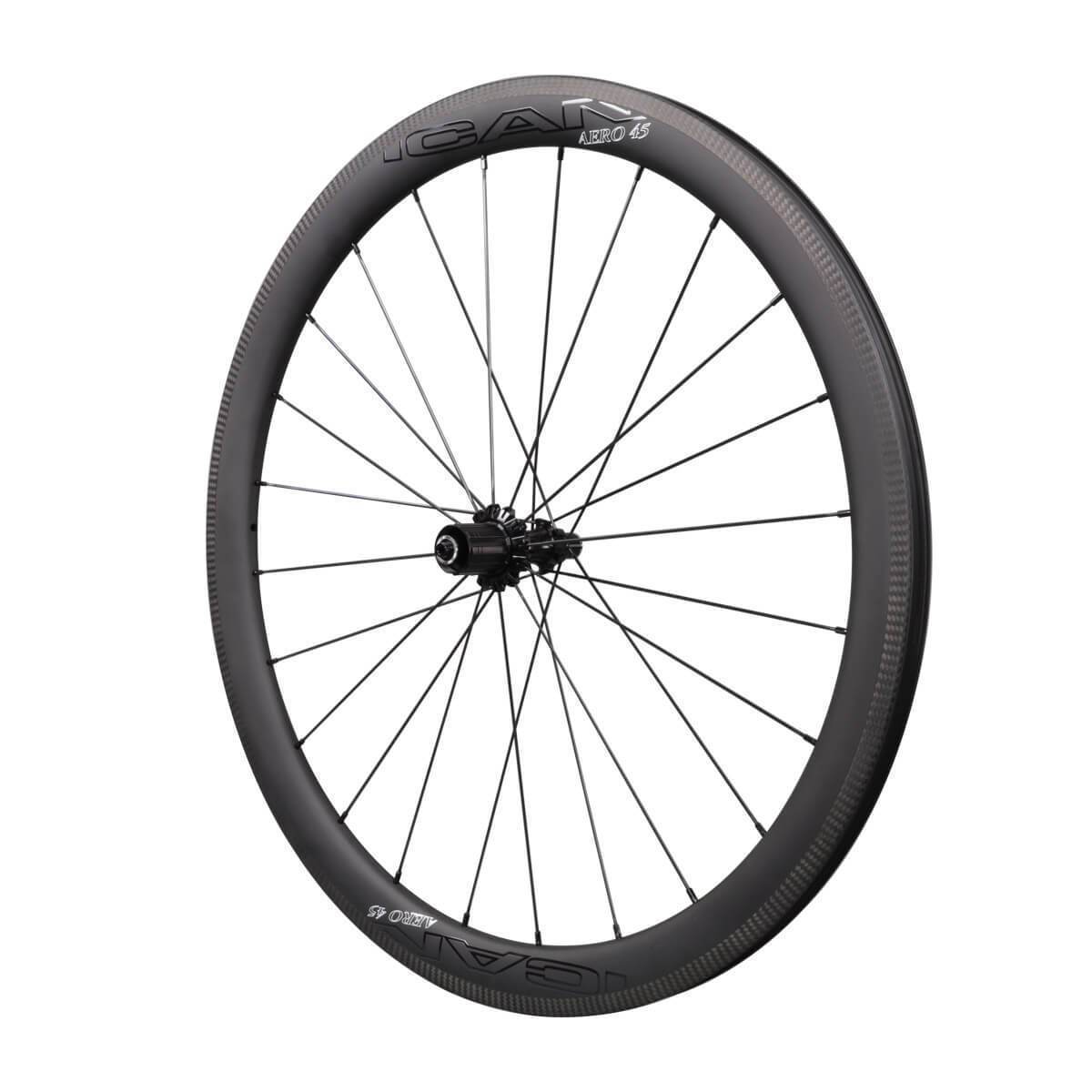

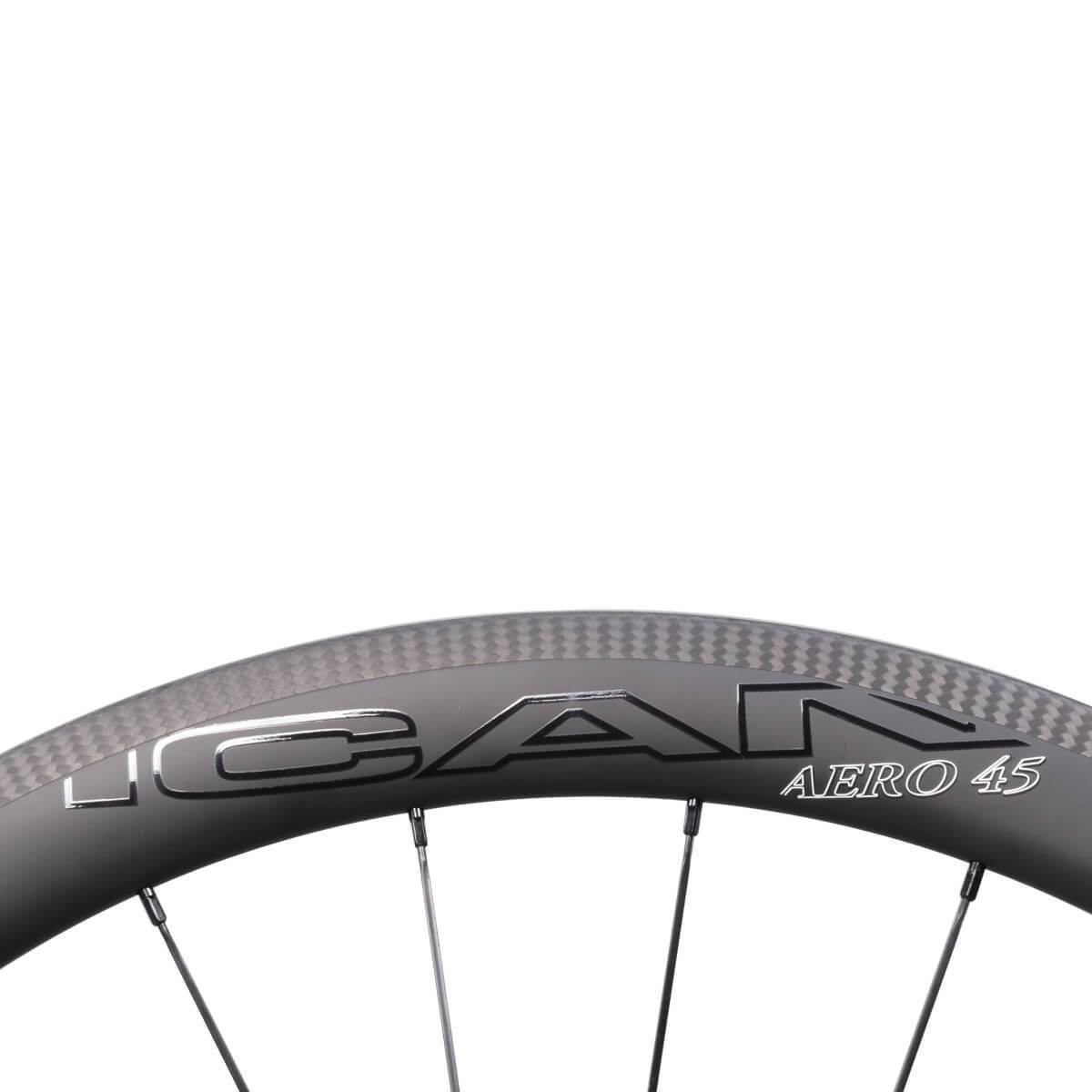

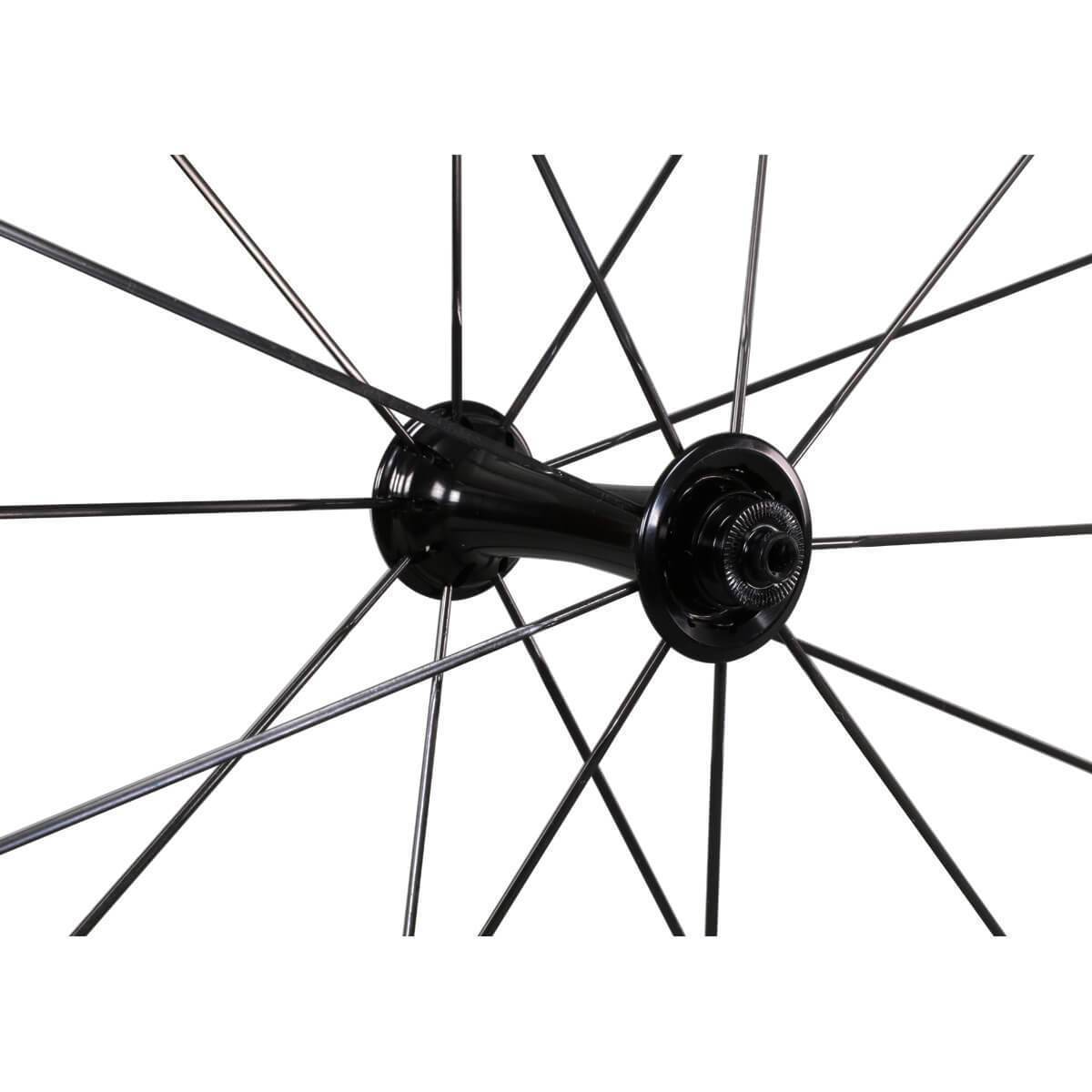

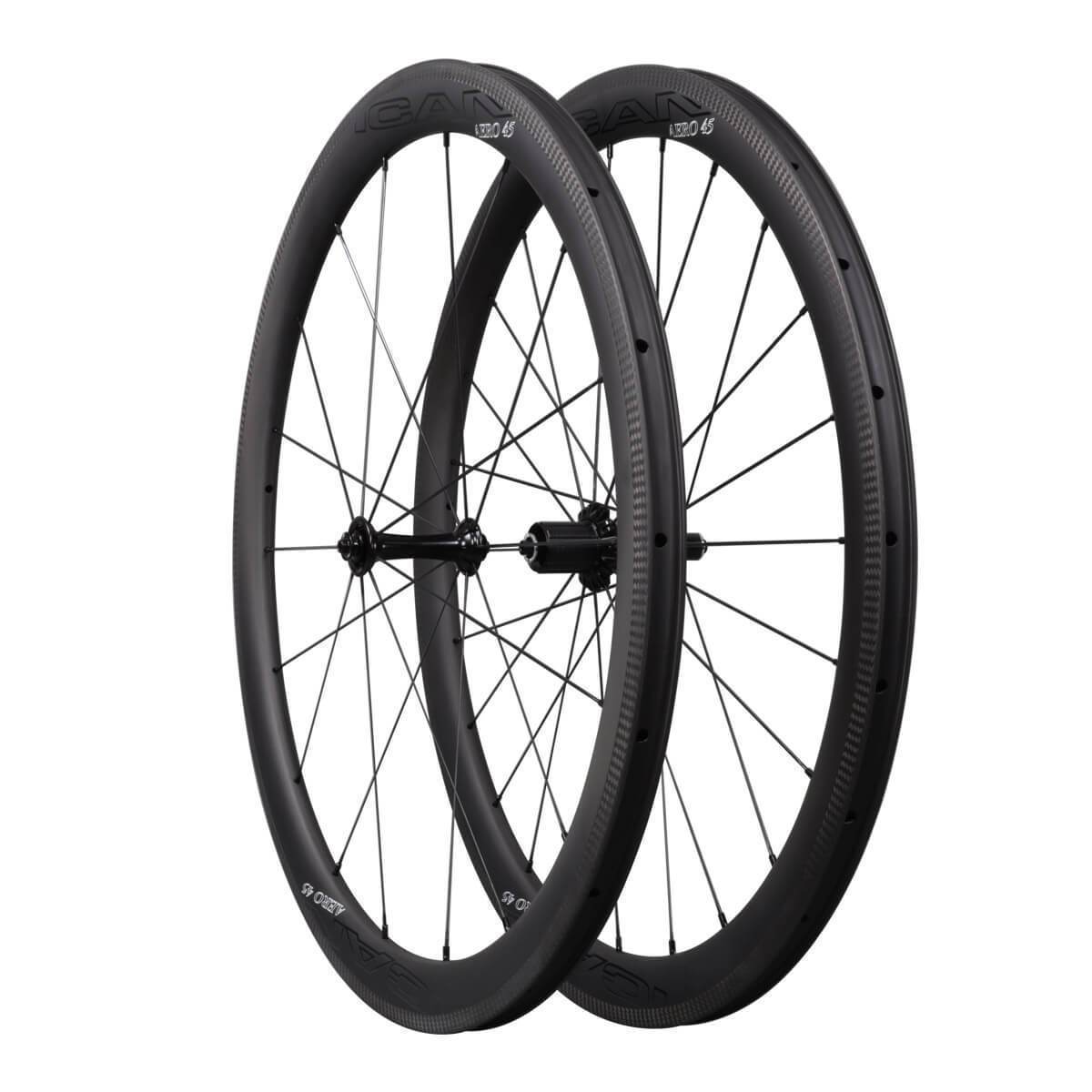

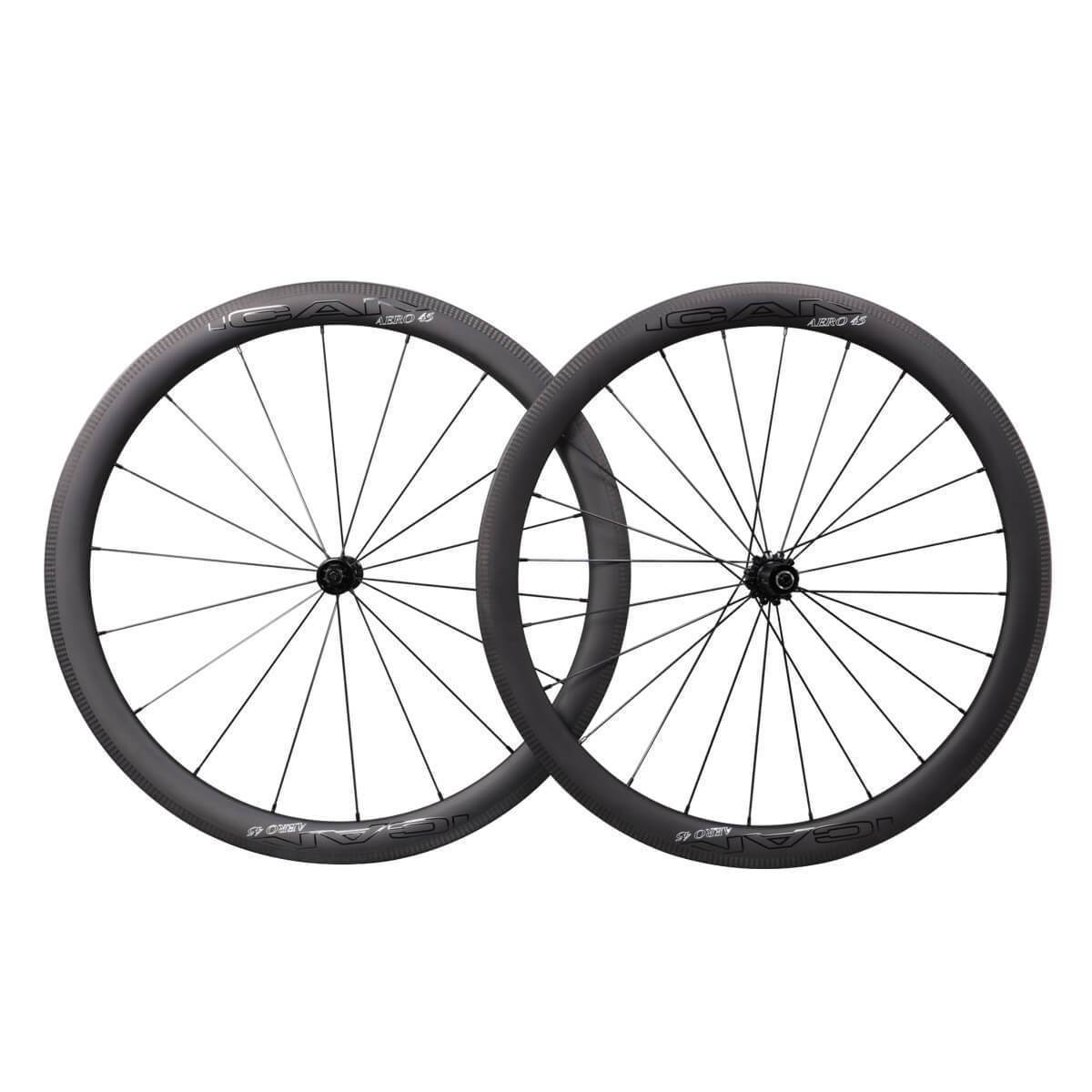

In 2019 please welcome our new Aero 45 wheelset. As you might guess this aero rim is 45mm deep. We will also lace it to our new ICAN R01 hubs. An aero wheel that you can ride during windy days is now available for you to purchase.
In 2018 our best selling wheels were our Fast and Light series, for 2019 we have taken the best features from the beloved FL series and made them lighter. Our FL series was a wide tubeless ready aero shape that was strong, light, stiff, and more importantly affordable.
Our Aero wheels take these qualities and have brought them to you in a wheelset that weighs around 100g less. Our engineers did that by changing the carbon fiber used in the wheel’s layup. Our FL series is constructed using Toray T700 carbon fiber, and our new Aero wheels use a T700 and T800 carbon fiber mix.
As well as helping the rims to lose weight we also made a change to the brake track. Our FL series could deal with temperatures of up to 240°, and now our new Aero wheels can cope with temperatures of up to 300°.
To lace your hubs to the carbon fiber rim, we use Sapim CX-Ray spokes. These aero spokes are a great choice as they are both light and stiff, much like our carbon fiber rim.
Features
Wide Rim Tech
25mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition. provides an ideal basis for 25/28mm tires, the sizes currently popular.
2-Way Clincher Tubeless. Tubes or No-Tubes
Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.
Sapim CX-RAY As light as a titanium spoke
The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.
Specification
Type |
Carbon Racing Bike Wheelset |
Material |
100% Carbon Fiber Toray T700 & T800 |
Size |
700C |
Rim |

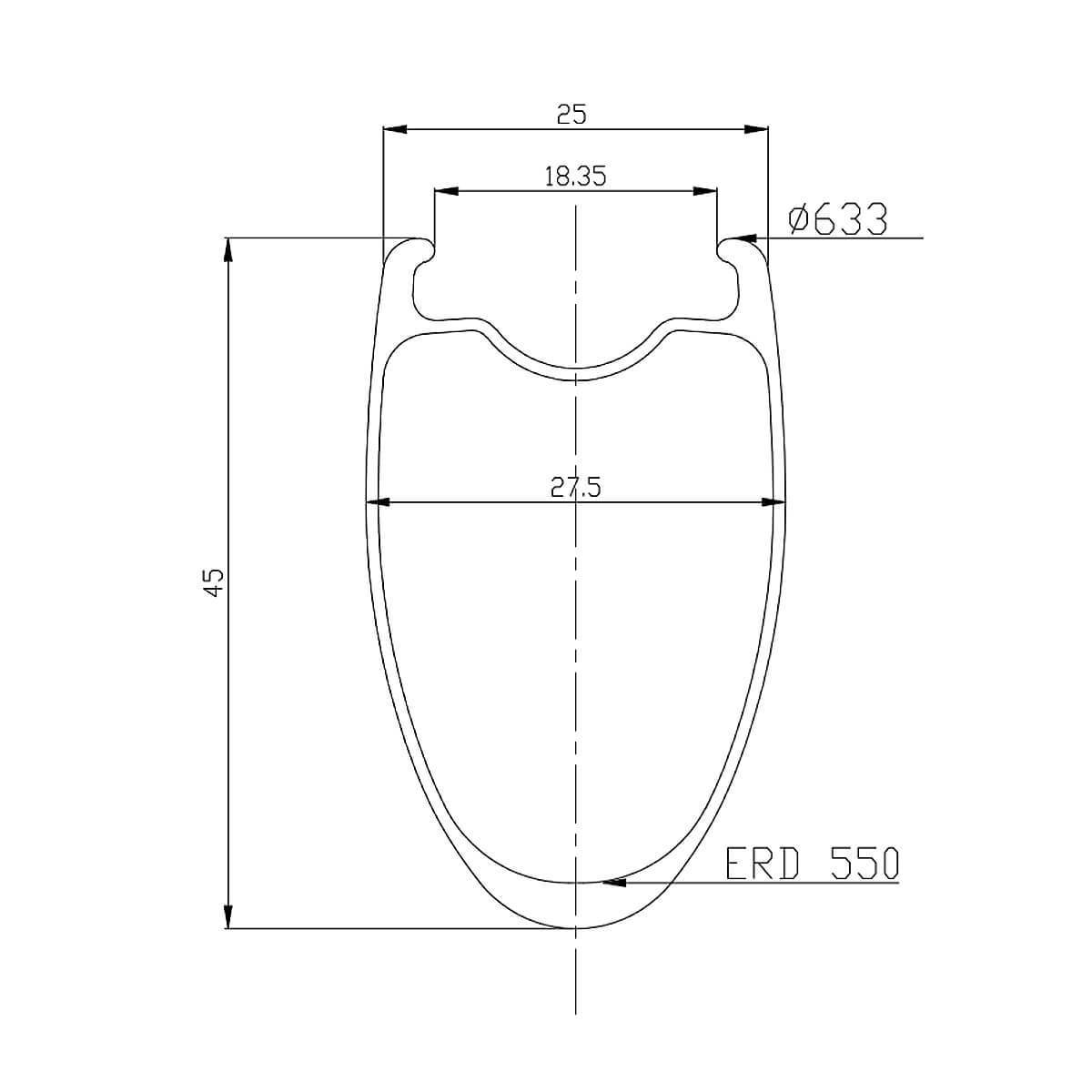

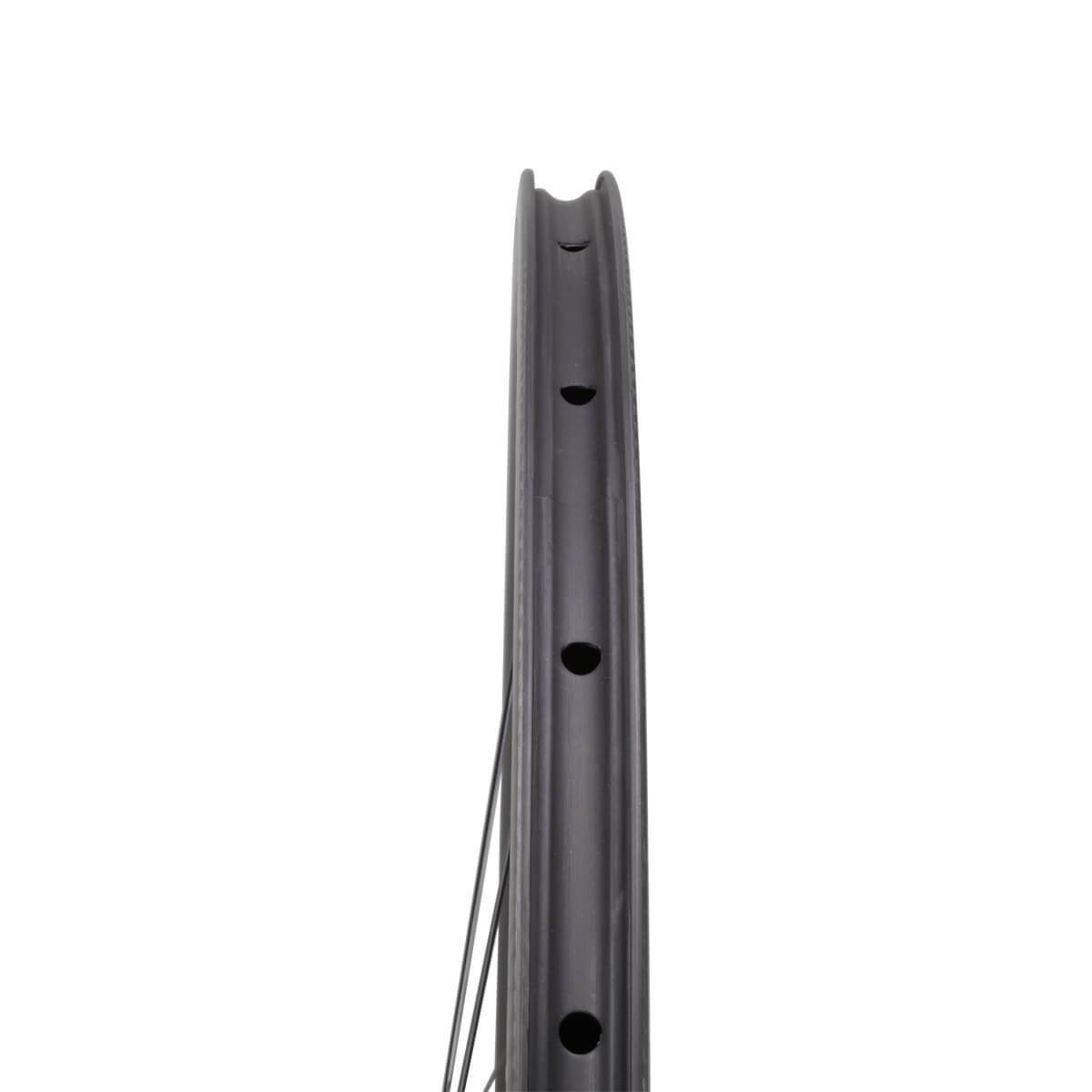

Finish: UD Matt Drills: 18/24 Holes Width: External: 25mm
Internal: 18.35mm
|
Depth |
45mm |
Profile |
Clincher Tubeless Ready |
Hub |
R01 Hubs
|
Spoke |
Sapim CX-Ray Spokes |
Spoke Count |
Front: 18 Rear: 24 |
Spoke Tension |
Front: 110kgf
Rear: Drive side: 136kgf
Non-drive side: 59kgf
|
Spoke Pattern |
Front:Radial
Rear: 2-cross non drive side
Radial drive side
|
Nipple |
Alloy Color: Black |
Cassette Compatibility |
Shimano 10/11speeds |
Wheelset Weight |
Total: 1357+-20g
Front: 594+-10g Rear: 763+-10g
|
Brake Surface |
3K Twill |
Rider Weight Limit |
232lbs/105kg
|
Guarantee |
2 years |
Free |
1 set of skewer
Carbon brakes pads
|
Packing Size |
81.5cm x 17cm x 65.5cm |
Recommended Tire Pressure
Below Chart is our recommended tire pressure,you can see more click here.
|
STANDARD CLINCHER TIRE WITH INNER TUBE |
TUBELESS TIRES |
≤ 65 KG RIDER |
23mm - 95/100 psi 25mm - 90/95 psi 28mm - 85/90 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 80/85 psi |
65 - 75 KG RIDER |
23mm - 100/105 psi 25mm - 95/100 psi 28mm - 90/95 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 85/90 psi |
75 - 85 KG RIDER |
23mm - 101/106 psi 25mm - 96/101 psi 28mm - 91/96 psi |
23mm - 95/98 psi 25mm - 90/95 psi 28mm - 85/90 psi |
85 - 95 KG RIDER |
23mm - 104/109 psi 25mm - 99/104 psi 28mm - 94/100 psi |
23mm - 95/99 psi 25mm - 90/95 psi 28mm - 88/95 psi |
IMPORTANT - Please check, and never exceed, the maximum recommended tire pressures on the side of your tire.
